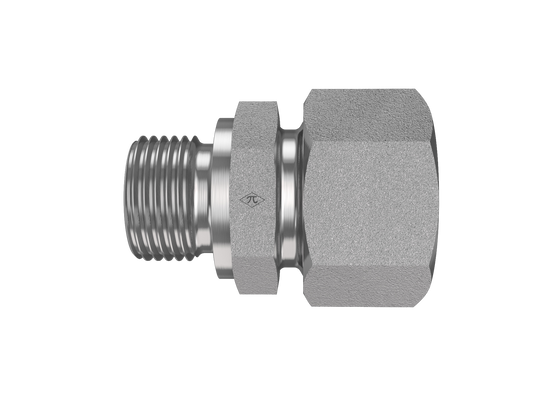

D8400-CF series product image

D8400-S20-27-CF

20mm DIN Tube x M27x2.0 Male Metric Cut Face

D8400-S20-27-CF is a 20mm DIN Tube x M27x2.0 Male Metric Cut Face in the D8400-CF Series. For connecting metric tube or line to Metric port.

  • Steel
  • Trivalent Zinc
  • Straight
$26.28
(0) Write a Review
SKU:
D8400-S20-27-CF

Product Details

Connection A
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Cut Face
Port SizeM27
Thread TypeM27X2.0
StandardISO 9974
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
