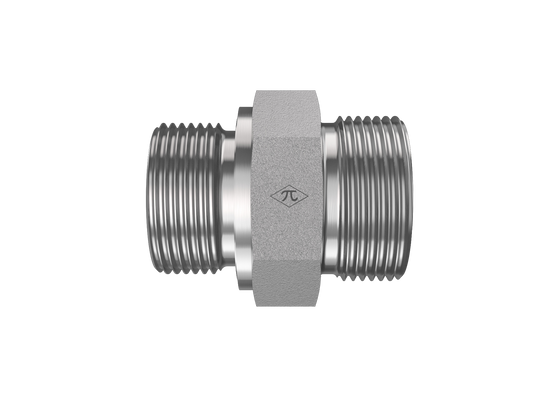

D8400-ED-X series product image

D8400-S25-33-ED-SS-X

25mm Male DIN x M33x2.0 Male Metric ED Seal

D8400-S25-33-ED-SS-X is a 25mm Male DIN x M33x2.0 Male Metric ED Seal in the D8400-ED-X Series. For connecting metric tube or line, already containing nut and cutting ring, to Metric port.

  • Stainless Steel
  • None
  • Straight
$161.70
(0) Write a Review
SKU:
D8400-S25-33-ED-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric ED Seal
Port SizeM33
Thread TypeM33X2.0
StandardISO 9974
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
