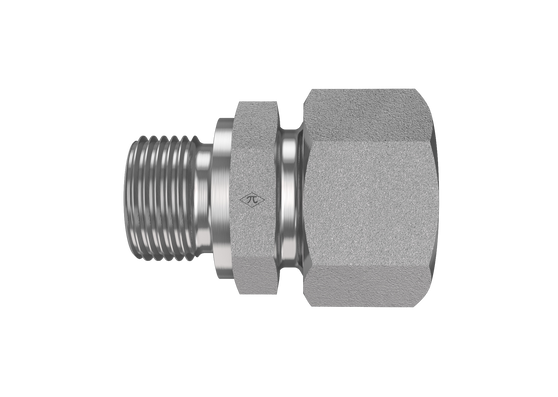

D8400-CF series product image

D8400-S38-48-CF

38mm DIN Tube x M48x2.0 Male Metric Cut Face

D8400-S38-48-CF is a 38mm DIN Tube x M48x2.0 Male Metric Cut Face in the D8400-CF Series. For connecting metric tube or line to Metric port.

  • Steel
  • Trivalent Zinc
  • Straight
$92.72
(0) Write a Review
SKU:
D8400-S38-48-CF

Product Details

Connection A
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Cut Face
Port SizeM48
Thread TypeM48X2.0
StandardISO 9974
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
