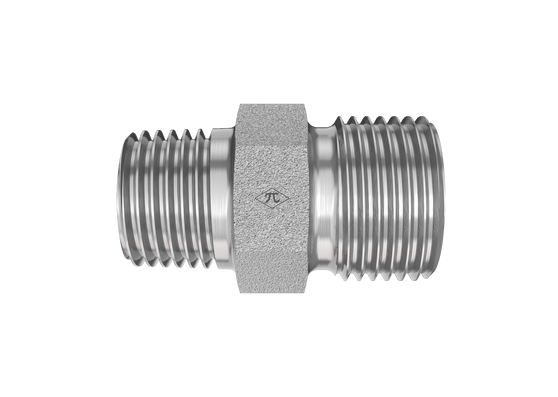

D8404-L08-12-SS-X

8mm Male DIN x 12mm Male Metric Taper

D8404-L08-12-SS-X is a 8mm Male DIN x 12mm Male Metric Taper in the D8404-X Series. For connecting metric tube or line, already containing nut and cutting ring, to Female Metric Tapered.

  • Stainless Steel
  • None
  • Straight
$33.07
(0) Write a Review
SKU:
D8404-L08-12-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Taper
Port SizeM12
Thread TypeM12X1.5
StandardDIN 3852-1
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
