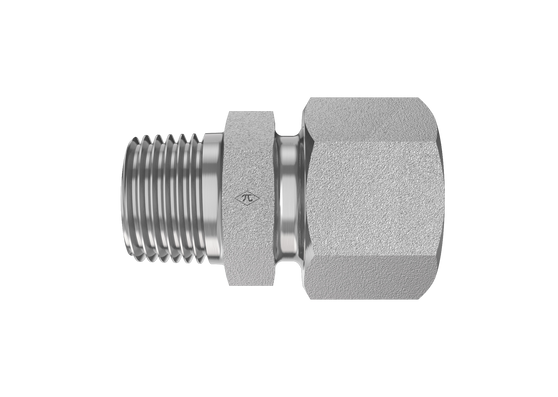

D8404 series product image

D8404-L12-16

12mm DIN Tube x 16mm Male Metric Taper

D8404-L12-16 is a 12mm DIN Tube x 16mm Male Metric Taper in the D8404 Series. For connecting metric tube or line to Female Metric Tapered.

  • Steel
  • Trivalent Zinc
  • Straight
$15.76
(0) Write a Review
SKU:
D8404-L12-16

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Taper
Port SizeM16
Thread TypeM16X1.5
StandardDIN 3852-1
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
