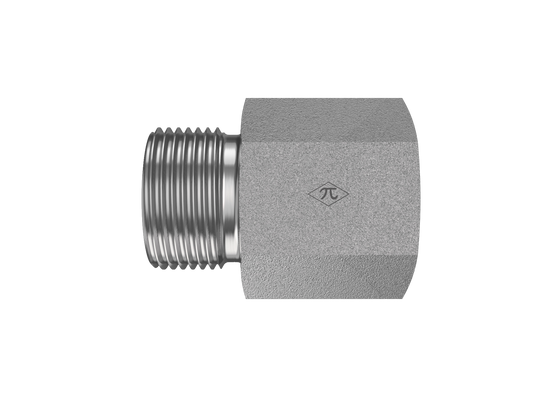

D8405-X series product image

D8405-L12-16-X

12mm Male DIN x M16x1.5 Female Metric

D8405-L12-16-X is a 12mm Male DIN x M16x1.5 Female Metric in the D8405-X Series. For connecting metric tube or line, already containing nut and cutting ring, to Female Metric Tapered.

  • Steel
  • Trivalent Zinc
  • Straight
$30.45
(0) Write a Review
SKU:
D8405-L12-16-X

Product Details

Connection A
TypeMale DIN
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeFemale Metric
Port SizeM16
Thread TypeM16X1.5
StandardISO 9974
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
