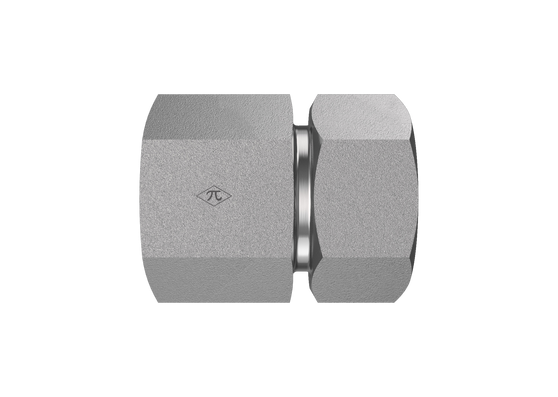

D8405 series product image

D8405-L15-18

15mm DIN Tube x M18x1.5 Female Metric

D8405-L15-18 is a 15mm DIN Tube x M18x1.5 Female Metric in the D8405 Series. For connecting metric tube or line to Male Metric Tapered.

  • Steel
  • Trivalent Zinc
  • Straight
$35.30
(0) Write a Review
SKU:
D8405-L15-18

Product Details

Connection A
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeFemale Metric
Port SizeM18
Thread TypeM18X1.5
StandardISO 9974
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
