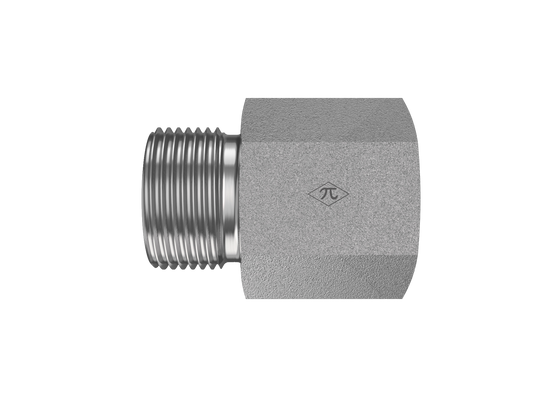

D8405-X series product image

D8405-L22-26-X

22mm Male DIN x M26x1.5 Female Metric

D8405-L22-26-X is a 22mm Male DIN x M26x1.5 Female Metric in the D8405-X Series. For connecting metric tube or line, already containing nut and cutting ring, to Female Metric Tapered.

  • Steel
  • Trivalent Zinc
  • Straight
$46.29
(0) Write a Review
SKU:
D8405-L22-26-X

Product Details

Connection A
TypeMale DIN
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeFemale Metric
Port SizeM26
Thread TypeM26X1.5
StandardISO 9974
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
