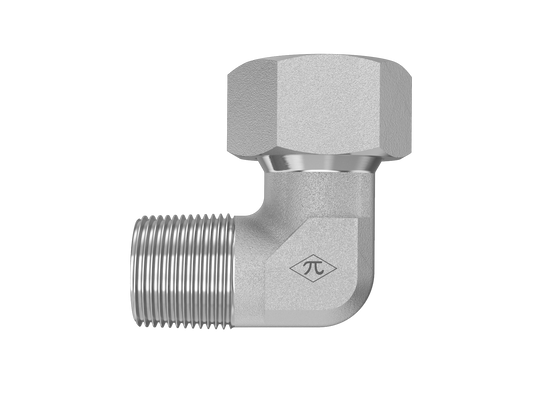

D8501-L08-12

8mm DIN Tube x M12x1.5 Male Metric Taper

D8501-L08-12 is a 8mm DIN Tube x M12x1.5 Male Metric Taper in the D8501 Series. For connecting metric tube or line to Female Metric Tapered at a 90° angle.

  • Steel
  • Trivalent Zinc
  • 90° Elbow
$13.62
(0) Write a Review
SKU:
D8501-L08-12

Product Details

Connection A
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Taper
Port SizeM12
Thread TypeM12X1.5
StandardDIN 3852-1
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape90° Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
