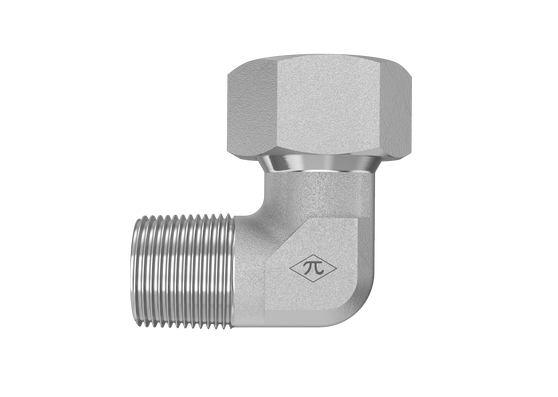

D8501-S14-20-SS

14mm DIN Tube x M20x1.5 Male Metric Taper

D8501-S14-20-SS is a 14mm DIN Tube x M20x1.5 Male Metric Taper in the D8501 Series. For connecting metric tube or line to Female Metric Tapered at a 90° angle.

  • Stainless Steel
  • None
  • 90° Elbow
$160.31
(0) Write a Review
SKU:
D8501-S14-20-SS

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Taper
Port SizeM20
Thread TypeM20X1.5
StandardDIN 3852-1
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
Shape90° Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
