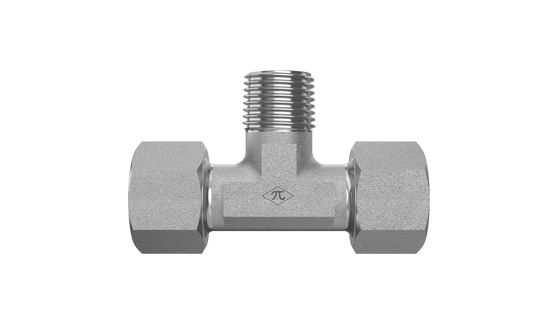

D8601-L12-L12-16-SS

12mm DIN Tube x M16x1.5 Male Metric Taper

D8601-L12-L12-16-SS is a 12mm DIN Tube x M16x1.5 Male Metric Taper in the D8601 Series. For branching two metric tubes or lines, to a Female Metric Tapered on the branch of the tee.

  • Stainless Steel
  • None
  • Tee
$154.91
(0) Write a Review
SKU:
D8601-L12-L12-16-SS

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeMale Metric Taper
Port SizeM16
Thread TypeM16X1.5
StandardDIN 3852-1
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeTee
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
