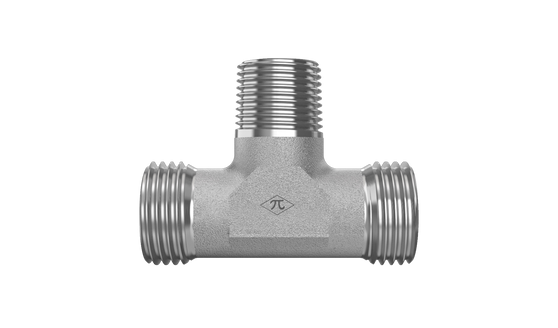

D8601-S06-S06-12-SS-X

6mm Male DIN x M12x1.5 Male Metric Taper

D8601-S06-S06-12-SS-X is a 6mm Male DIN x M12x1.5 Male Metric Taper in the D8601-X Series. For branching two metric tubes or lines, already containing nuts and cutting rings, to a Female Metric Tapered on the branch of the tee.

  • Stainless Steel
  • None
  • Tee
$94.49
(0) Write a Review
SKU:
D8601-S06-S06-12-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale DIN
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeMale Metric Taper
Port SizeM12
Thread TypeM12X1.5
StandardDIN 3852-1
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeTee
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
