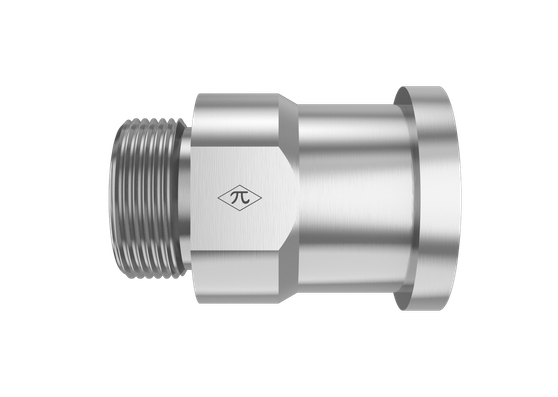

Google Merchant product image

FS1700-08-08

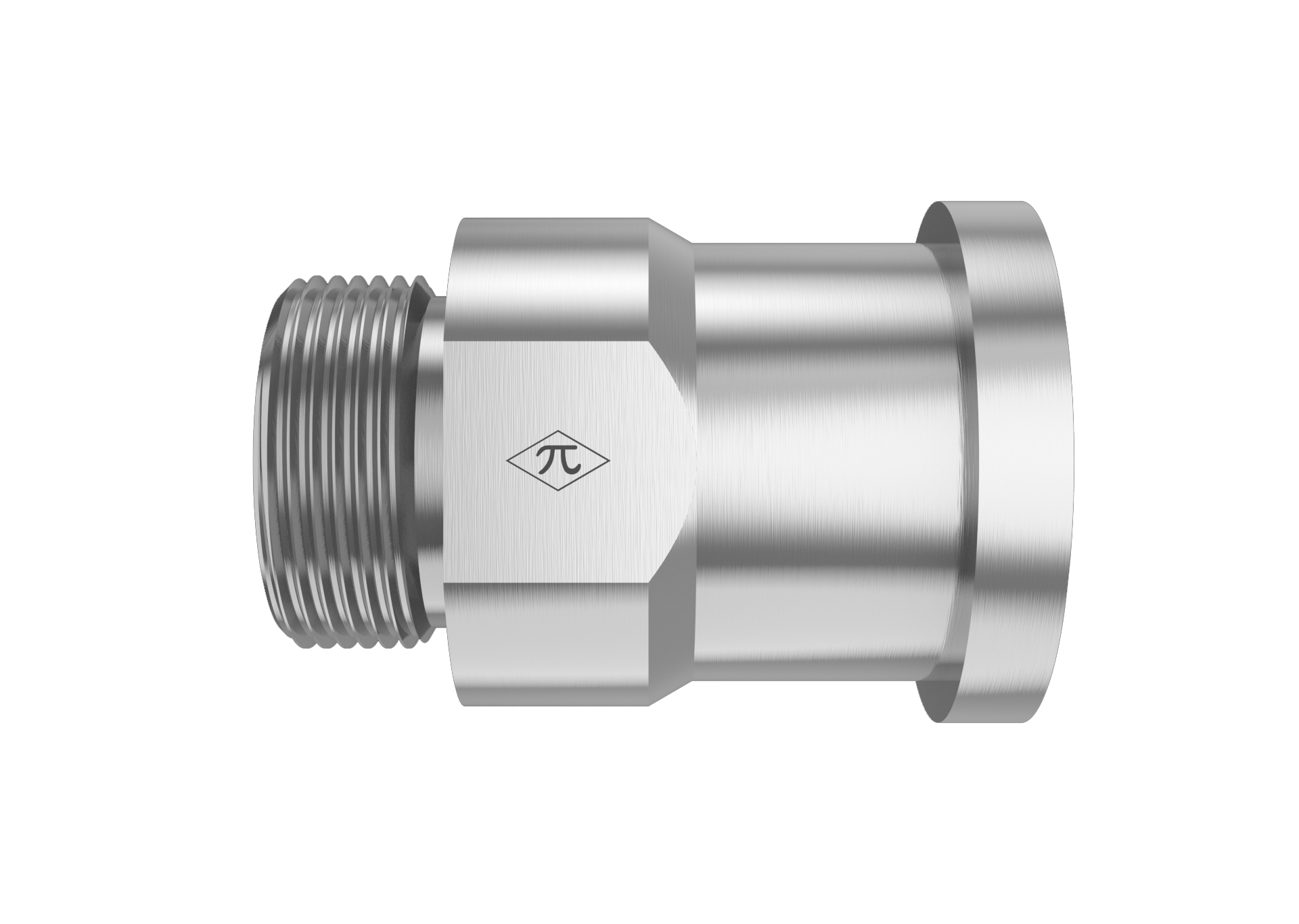

1/2" Male ORFS x 1/2" Split Flange Head

FS1700-08-08 is a 1/2" Male ORFS x 1/2" Split Flange Head in the FS1700 Series. For adapting ORFS flanged tubes or lines to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
$3.12
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453
Connection B
TypeSplit Flange Head
Size1/2"
StandardSAE J518
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
