FS1803-16-16-FG

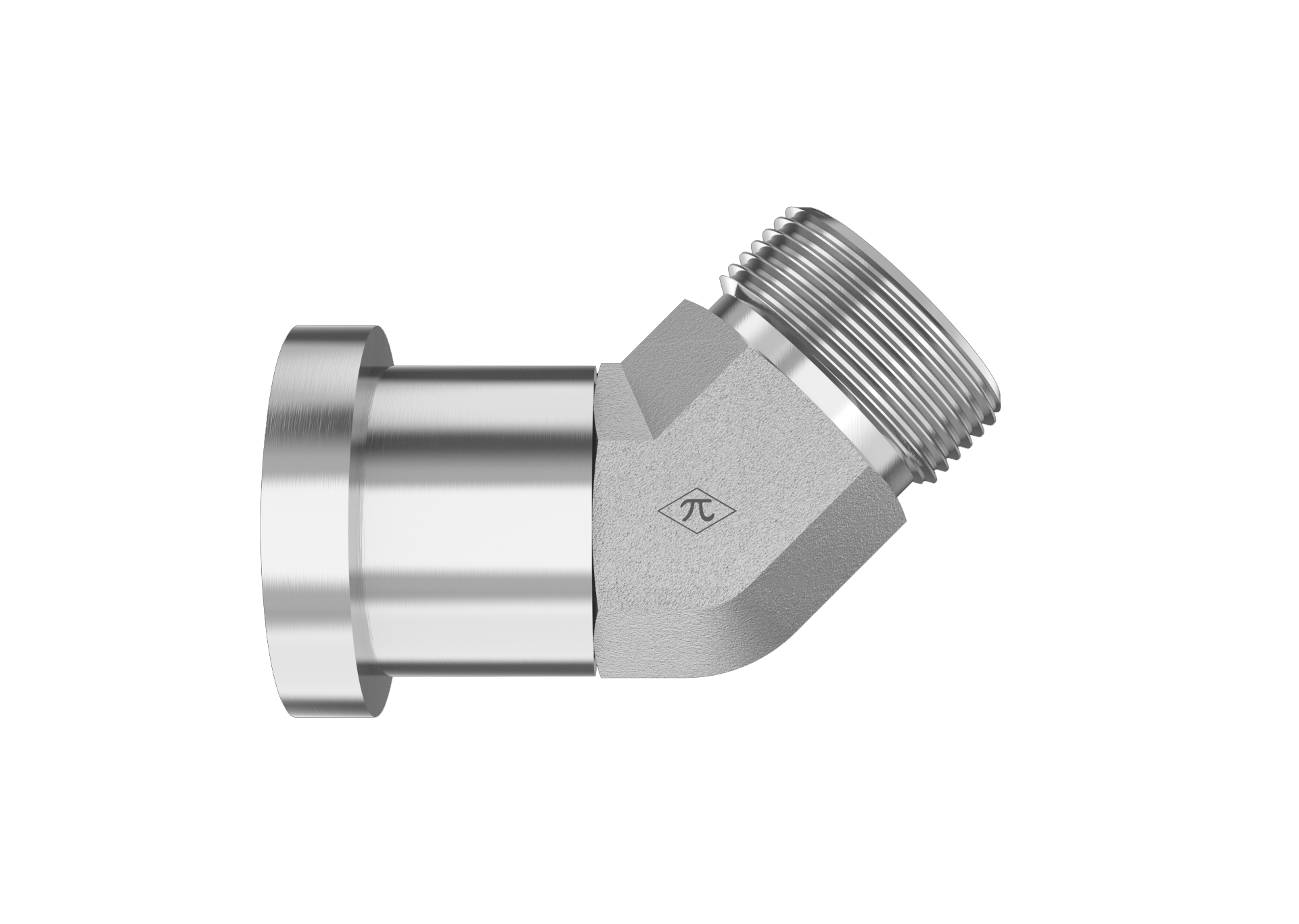

1" Male ORFS x 1" Split Flange Head

FS1803-16-16-FG is a 1" Male ORFS x 1" Split Flange Head in the FS1803-FG Series. For adapting ORFS flanged tubes or lines to an SAE Code 62 Flange port at a 45° angle using a forged body for additional strength.

  • Steel
  • Trivalent Zinc
$28.52
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
