FS1804-16-20-FG

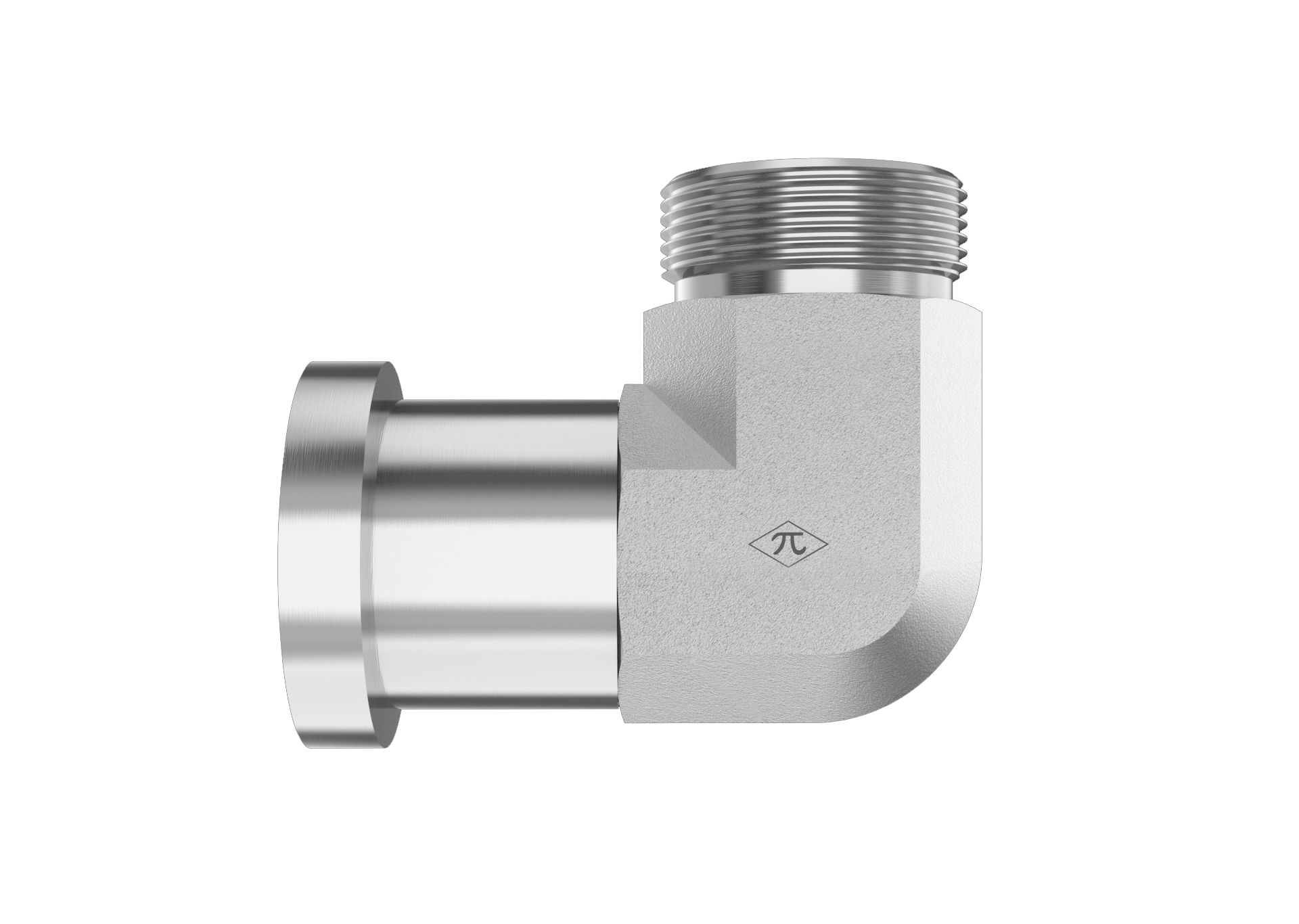

1" Male ORFS x 1-1/4" Split Flange Head

FS1804-16-20-FG is a 1" Male ORFS x 1-1/4" Split Flange Head in the FS1804-FG Series. For adapting ORFS flanged tubes or lines to an SAE Code 62 Flange port at a 90° angle using a forged body for additional strength.

  • Steel
  • Trivalent Zinc
$188.08
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453
Connection B
TypeSplit Flange Head
Size1-1/4"
StandardSAE J518
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
