HGW HYDRAULICS

FS2404-06-08-VITON

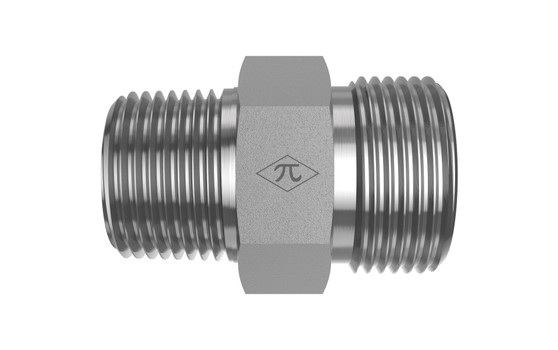

3/8" Male ORFS x 1/2" Male NPTF 30°

FS2404-06-08-VITON is a 3/8" Male ORFS x 1/2" Male NPTF 30° in the FS2404 Series. FS2404 connects a male ORFS tube end to a male NPTF pipe end in a straight adapter for SAE J1453 to SAE J476 transitions.

  • Steel
  • Trivalent Zinc
  • Connector
$8.24
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type11/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.16 lb
Cross References
AeroquipFF2031T0608-213
Parker6-8 FLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
