FS2405-08-08

HGW HYDRAULICS

FS2405-08-08

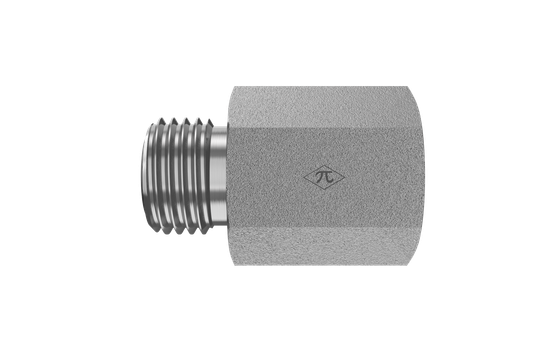

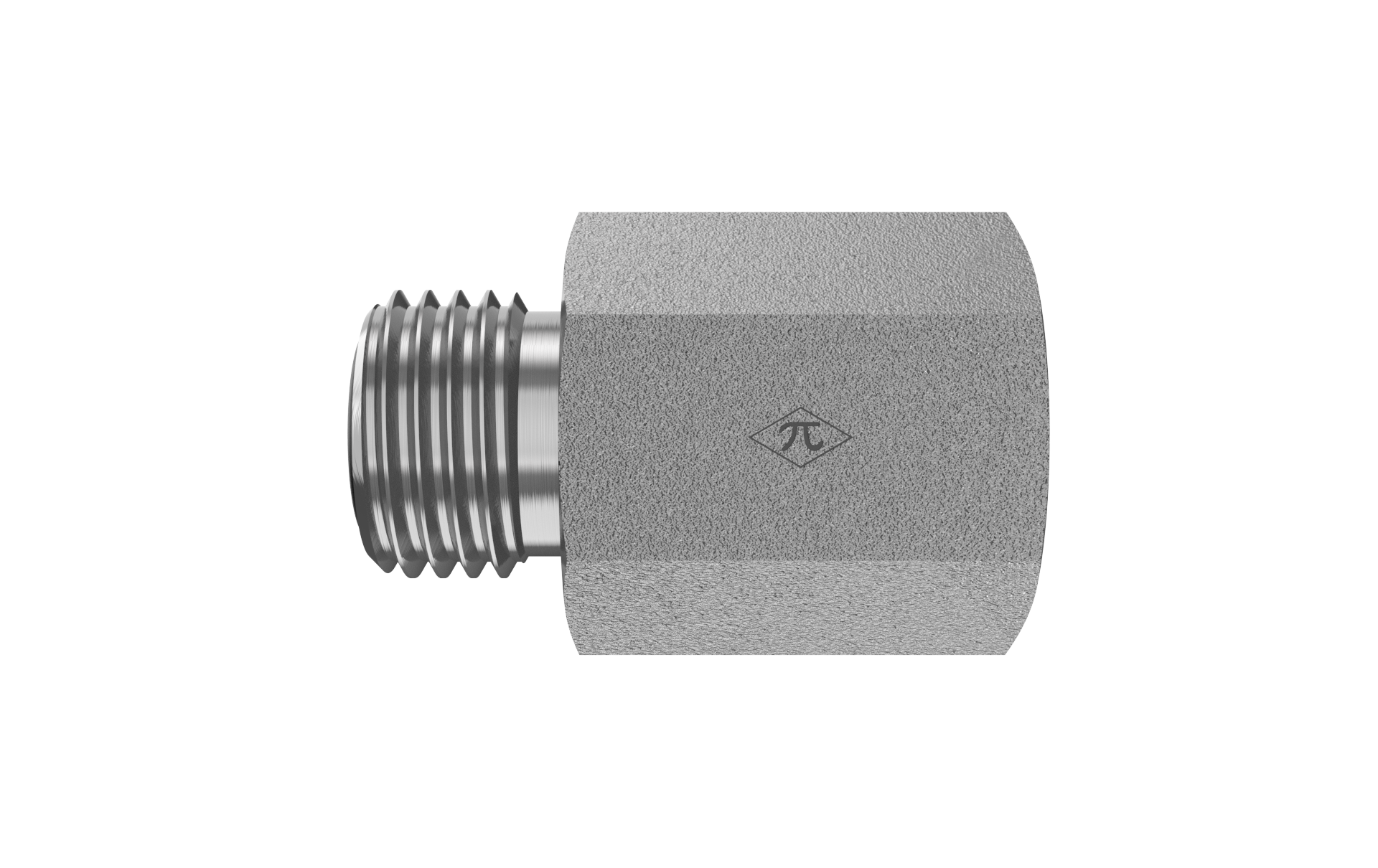

1/2" Male ORFS × 1/2" Female NPTF · Straight Connector

The HGW FS2405-08-08 is a straight connector joining 1/2" male ORFS to 1/2" female NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Connector
$20.83
(0) Write a Review
SKU:
FS2405-08-08

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type13/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.27 lb
Cross References
Parker8-8 GLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
