HGW HYDRAULICS

FS2500-08-08-FG

1/2" Male ORFS x 1/2" Male ORFS

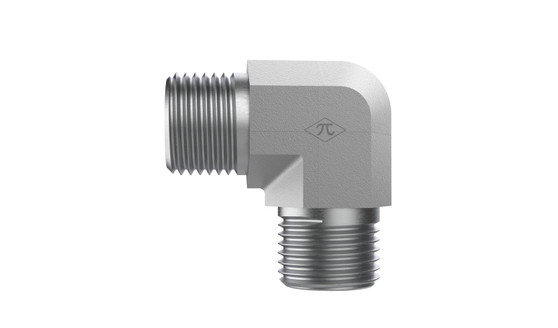

FS2500-08-08-FG is a 1/2" Male ORFS x 1/2" Male ORFS in the FS2500-FG Series. For connecting two ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Union Elbow
$4.62
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type13/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Elbow
Weight0.22 lb
Cross References
AeroquipFF2035T0808S
Parker8 ELO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
