HGW HYDRAULICS

FS2500-20-20-FG

1-1/4" Male ORFS x 1-1/4" Male ORFS

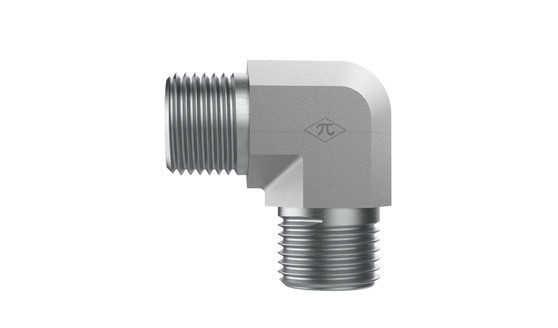

FS2500-20-20-FG is a 1-1/4" Male ORFS x 1-1/4" Male ORFS in the FS2500-FG Series. For connecting two ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Union Elbow
$50.90
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-11/16-12 UN
Connection B
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-11/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Elbow
Weight1.34 lb
Cross References
AeroquipFF2035T2020S
Parker20 ELO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
