HGW HYDRAULICS

FS2501-06-06-FG

3/8" Male ORFS x 3/8" Male NPTF 30°

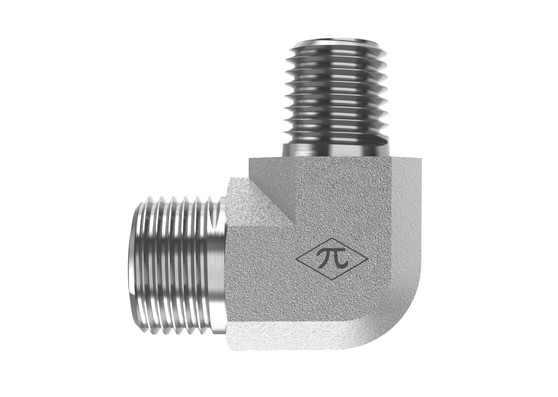

FS2501-06-06-FG is a 3/8" Male ORFS x 3/8" Male NPTF 30° in the FS2501-FG Series. For connecting ORFS-sealed tubes or lines to pipe at a 90° angle without requiring pipe sealant on the tube end.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$4.77
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - O-Ring Face Seal
Thread Type11/16-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type11/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.19 lb
Cross References
AeroquipFF2032T0606S
Parker6-6 CLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
