HGW HYDRAULICS

FS2601-06-06-04-FG

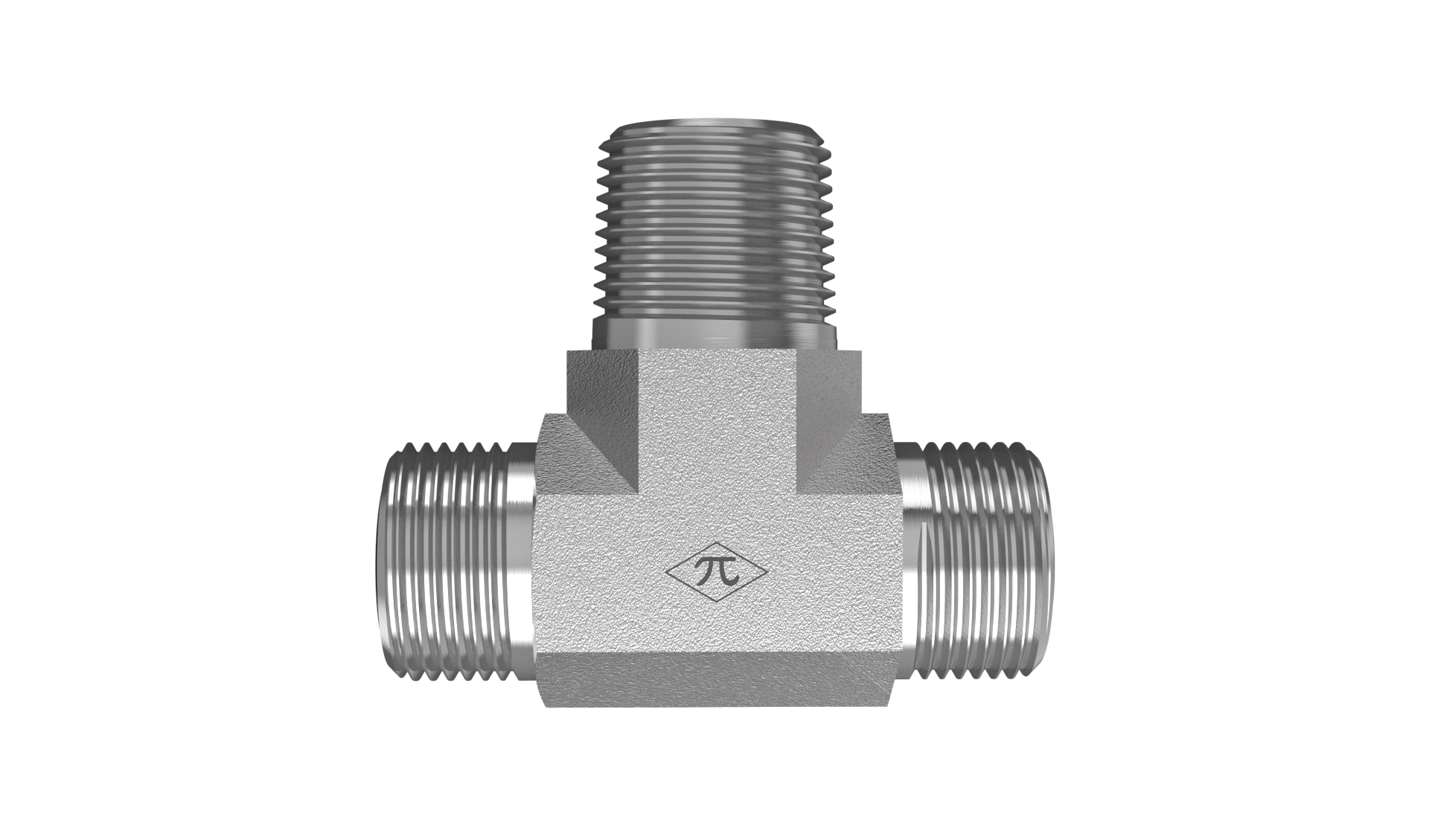

3/8" Male ORFS × 3/8" Male ORFS × 1/4" Male NPTF · Male Branch Tee

The HGW FS2601-06-06-04-FG is a male branch tee combining 3/8" male ORFS, 3/8" male ORFS, and 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$6.44
(0) Write a Review
SKU:
FS2601-06-06-04-FG

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection C
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type11/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.24 lb
Cross References
AeroquipFF2001T0604S
Parker6 SLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
