HGW HYDRAULICS

FS2601-06-06-06-FG

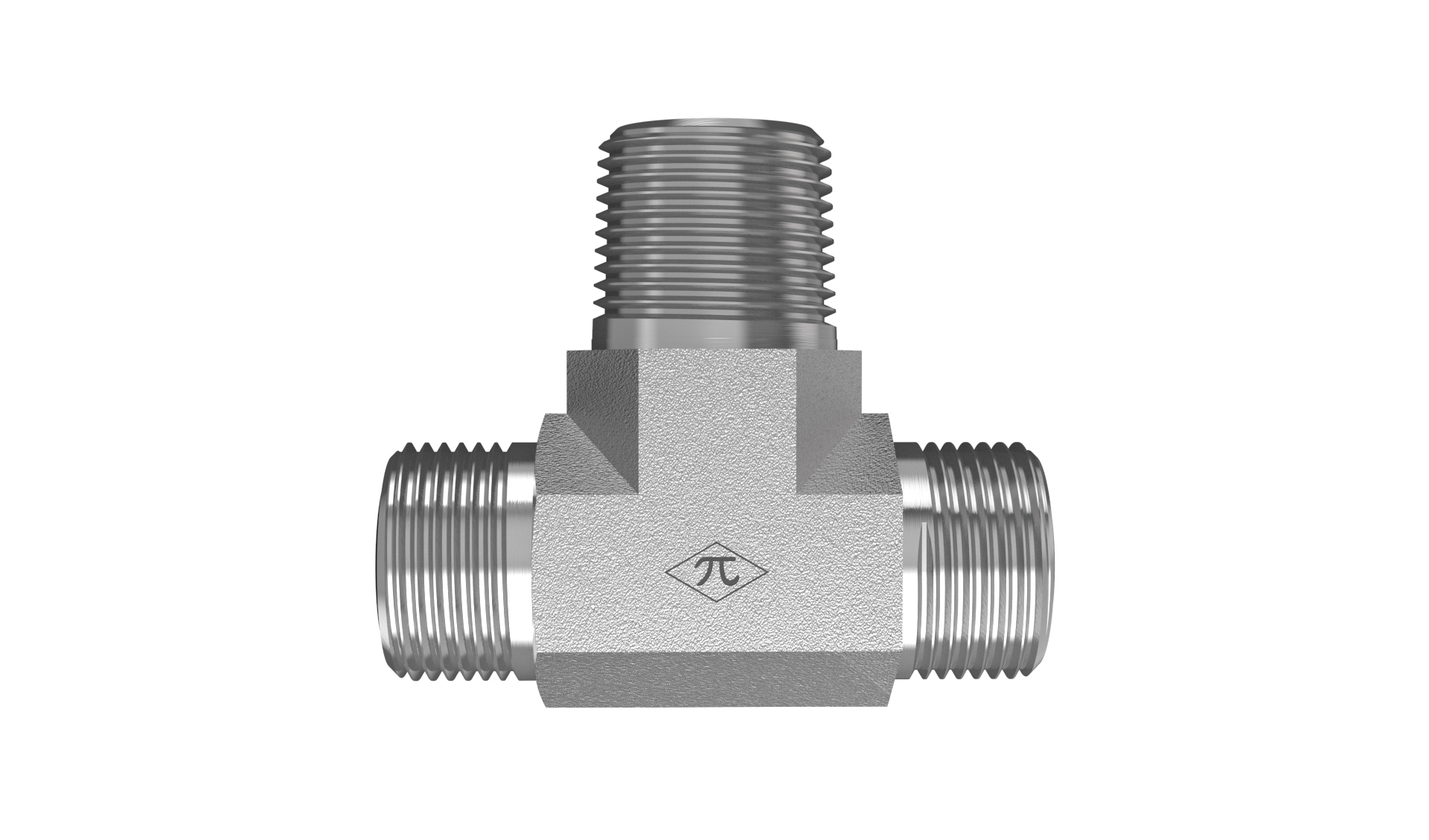

3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male NPTF 30°

FS2601-06-06-06-FG is a 3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male NPTF 30° in the FS2601-FG Series. For branching pipe to two ORFS flanged tubes or lines without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$7.57
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection C
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type11/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.25 lb
Cross References
AeroquipFF2001T0606S
Parker6-6-6 SLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
