HGW HYDRAULICS

FS2601-08-08-08-FG

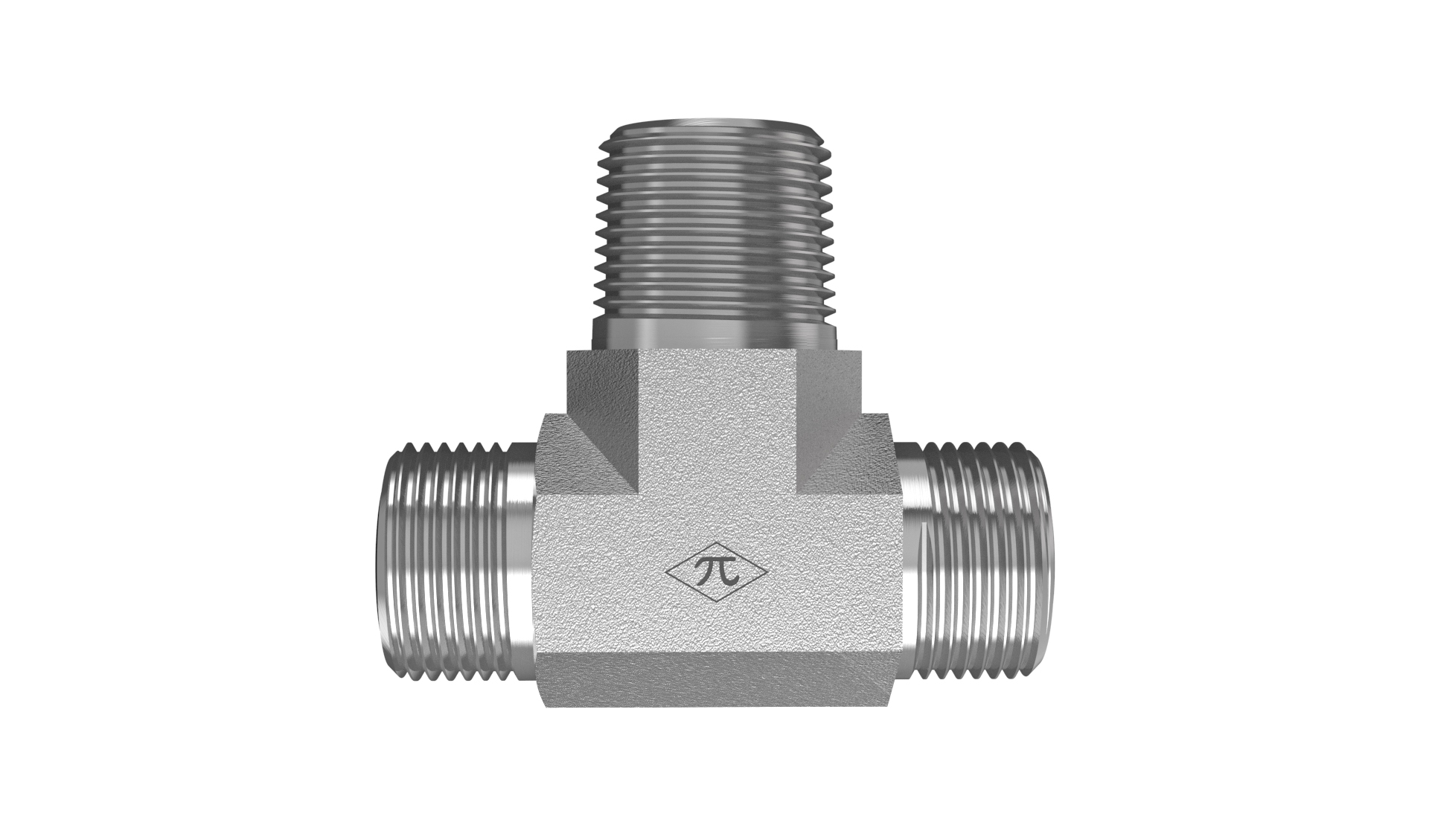

1/2" Male ORFS × 1/2" Male ORFS × 1/2" Male NPTF · Male Branch Tee

The HGW FS2601-08-08-08-FG is a male branch tee combining 1/2" male ORFS, 1/2" male ORFS, and 1/2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$9.93
(0) Write a Review
SKU:
FS2601-08-08-08-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection C
TypeMale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type13/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.37 lb
Cross References
AeroquipFF2001T0808S
Parker8-8-8 SLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
