FS2601-20-20-20-FG

1-1/4" Male ORFS × 1-1/4" Male ORFS × 1-1/4" Male NPTF · Male Branch Tee

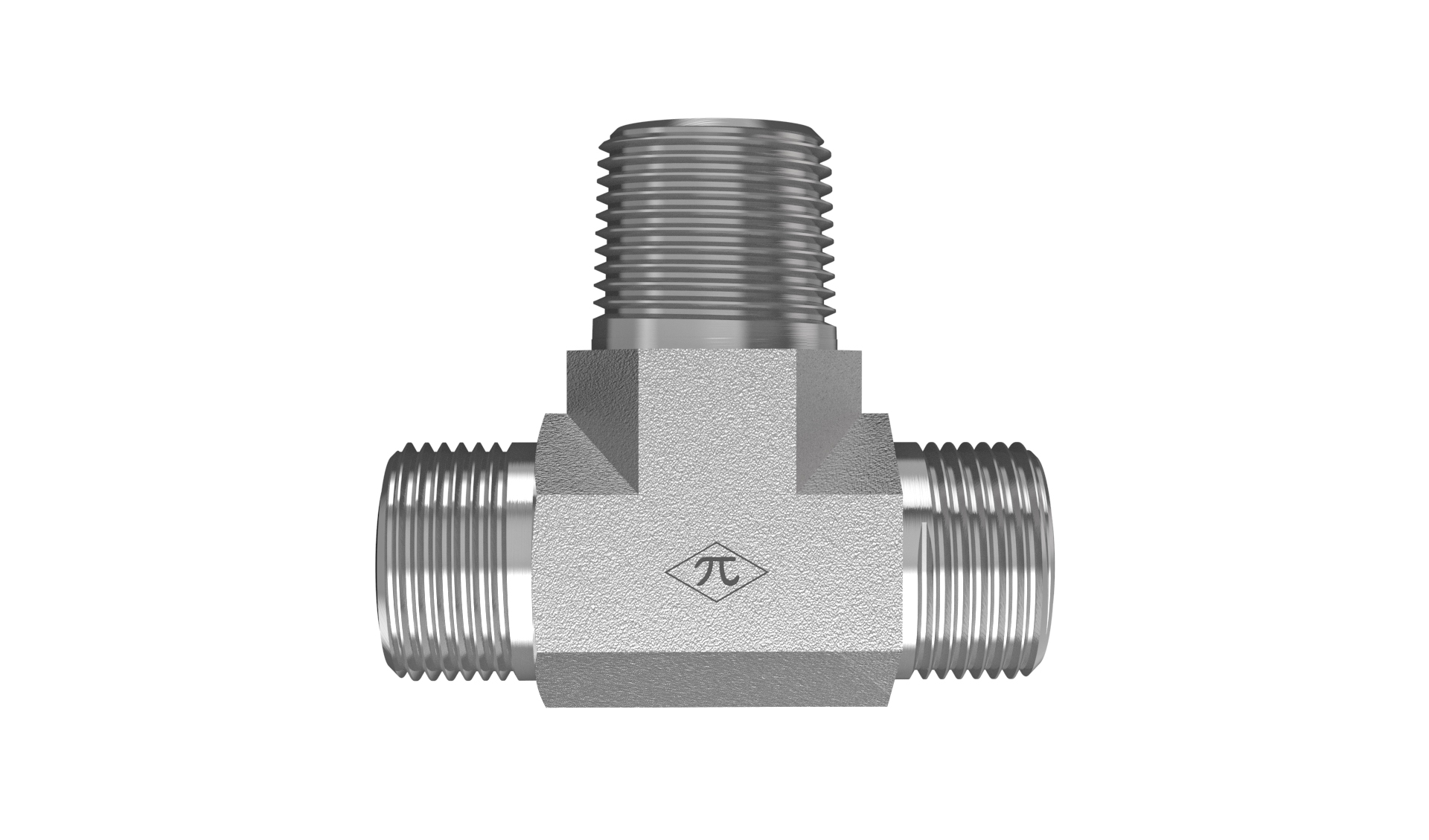

The HGW FS2601-20-20-20-FG is a male branch tee combining 1-1/4" male ORFS, 1-1/4" male ORFS, and 1-1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$154.96
(0) Write a Review
SKU:
FS2601-20-20-20-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection B
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection C
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-11/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight1.64 lb
Cross References
AeroquipFF2001T2020S
Parker20 SLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
