HGW HYDRAULICS

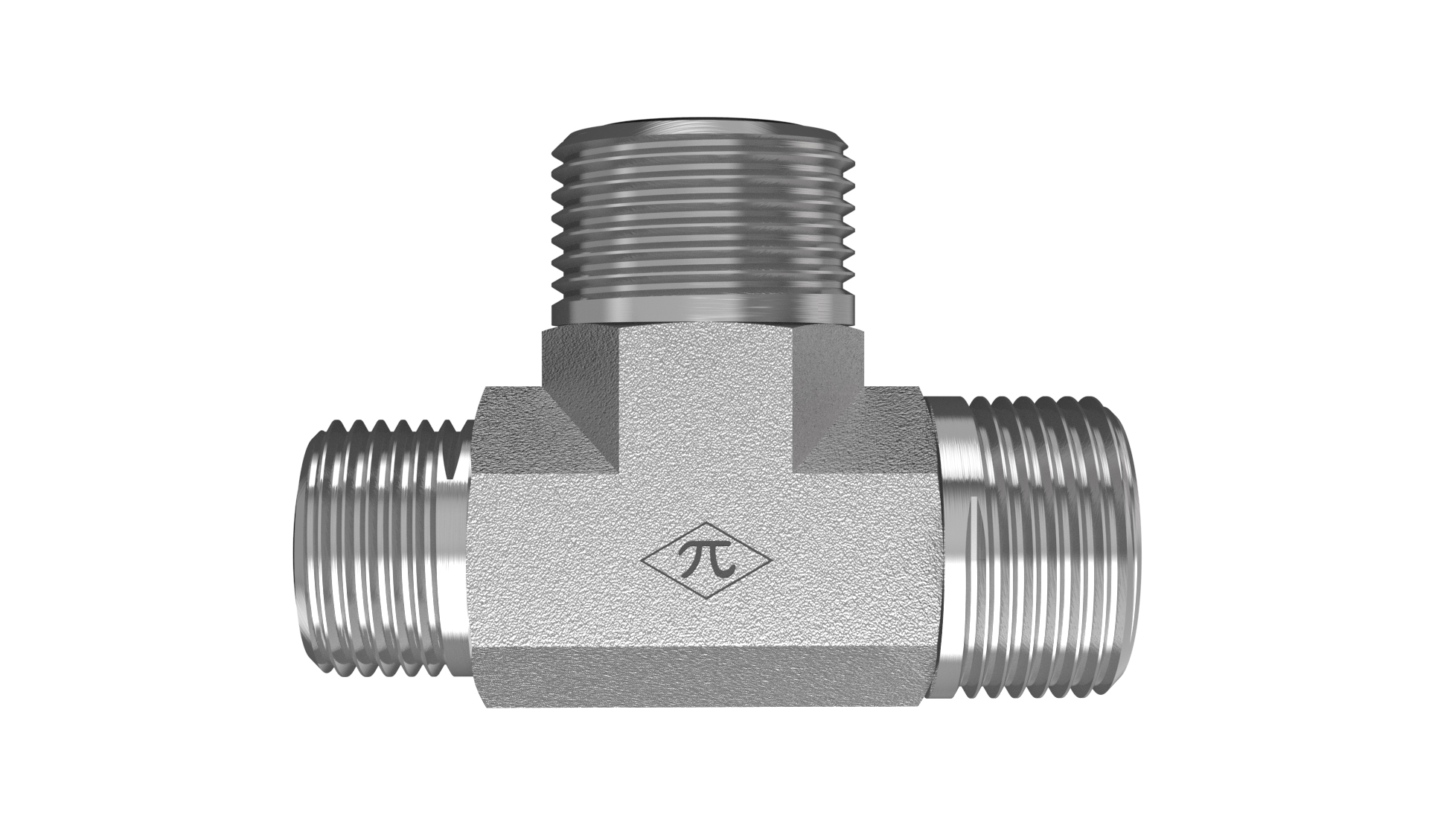

FS2603-16-16-12-FG

1" Male ORFS × 1" Male ORFS × 3/4" Male ORFS · Union Tee

The HGW FS2603-16-16-12-FG is a union tee combining 1" male ORFS, 1" male ORFS, and 3/4" male ORFS. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Tee
$51.23
(0) Write a Review
SKU:
FS2603-16-16-12-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight1.24 lb
Cross References
AeroquipFF1898T1612S
Parker16-16-12 JLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
