HGW HYDRAULICS

FS2603-16-16-16-FG-VITON

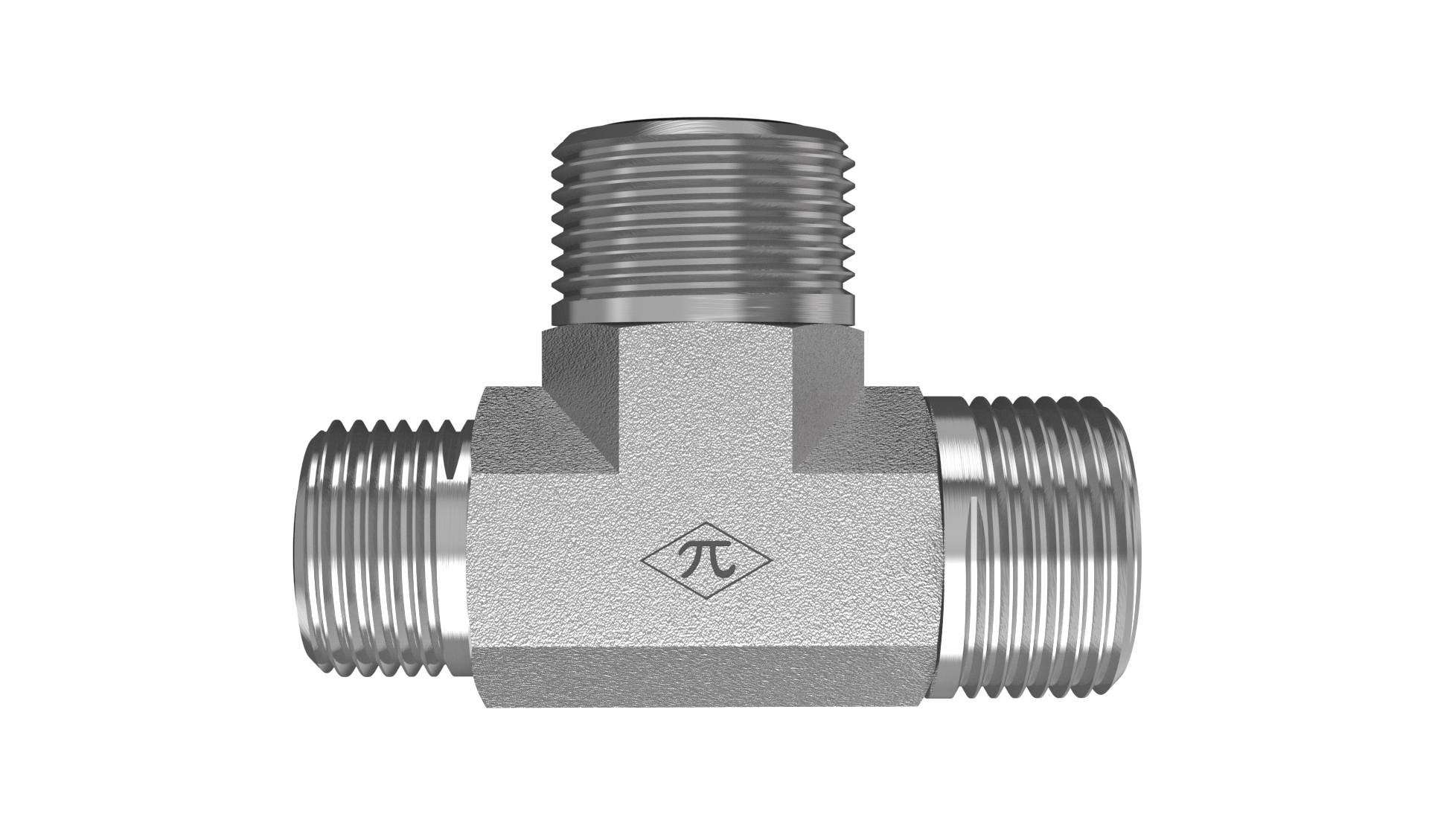

1" Male ORFS × 1" Male ORFS × 1" Male ORFS · Union Tee

The HGW FS2603-16-16-16-FG-VITON is a union tee joining 1" male ORFS connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Tee
$56.66
(0) Write a Review
SKU:
FS2603-16-16-16-FG-VITON

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight1.28 lb
Cross References
AeroquipFF1898T1616-213
Parker16 JLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
