HGW HYDRAULICS

FS2603-24-24-24-FG-VITON

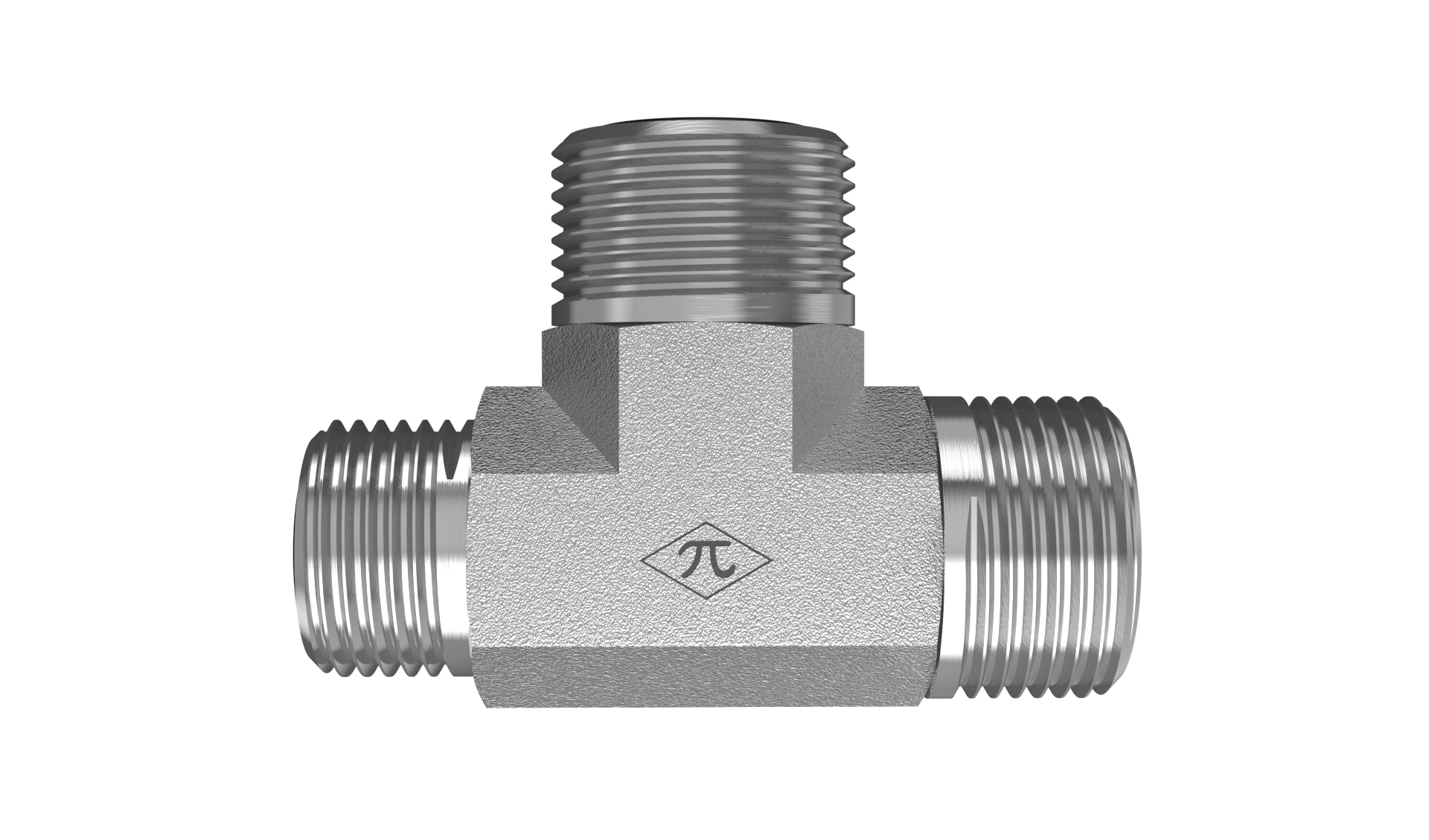

1-1/2" Male ORFS × 1-1/2" Male ORFS × 1-1/2" Male ORFS · Union Tee

The HGW FS2603-24-24-24-FG-VITON is a union tee joining 1-1/2" male ORFS connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Tee
$289.11
(0) Write a Review
SKU:
FS2603-24-24-24-FG-VITON

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type2-12 UNF
Connection B
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type2-12 UNF
Connection C
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type2-12 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight4.08 lb
Cross References
AeroquipFF1898T2424-213
Parker24 JLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
