HGW HYDRAULICS

FS2650-04-04-04-04-FG

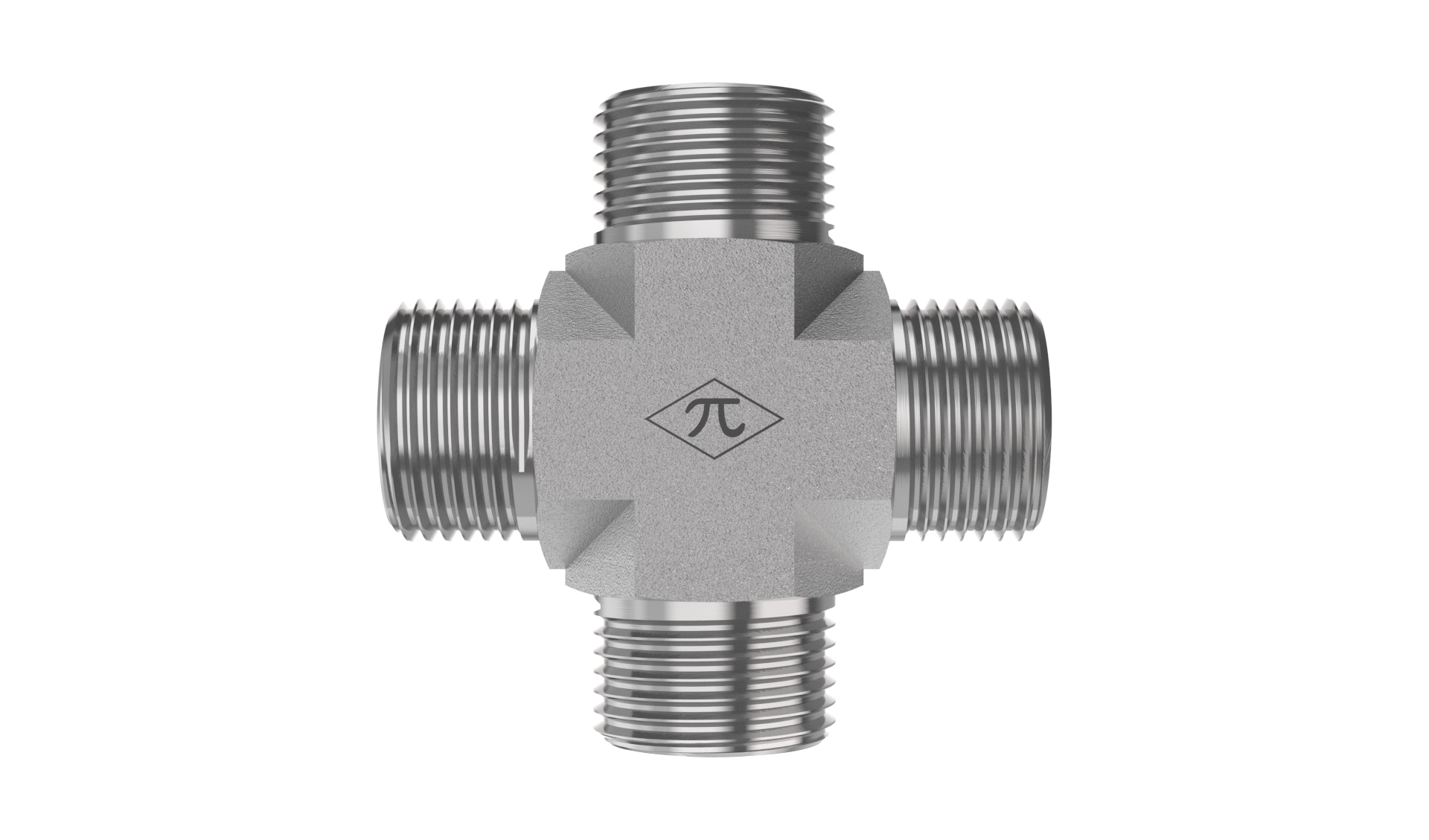

1/4" Male ORFS × 1/4" Male ORFS × 1/4" Male ORFS × 1/4" Male ORFS · Union Cross

The HGW FS2650-04-04-04-04-FG is a union cross joining 1/4" male ORFS connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Cross
$4.74
(0) Write a Review
SKU:
FS2650-04-04-04-04-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection D
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.18 lb
Cross References
AeroquipFF2127T0404S
Parker4 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
