HGW HYDRAULICS

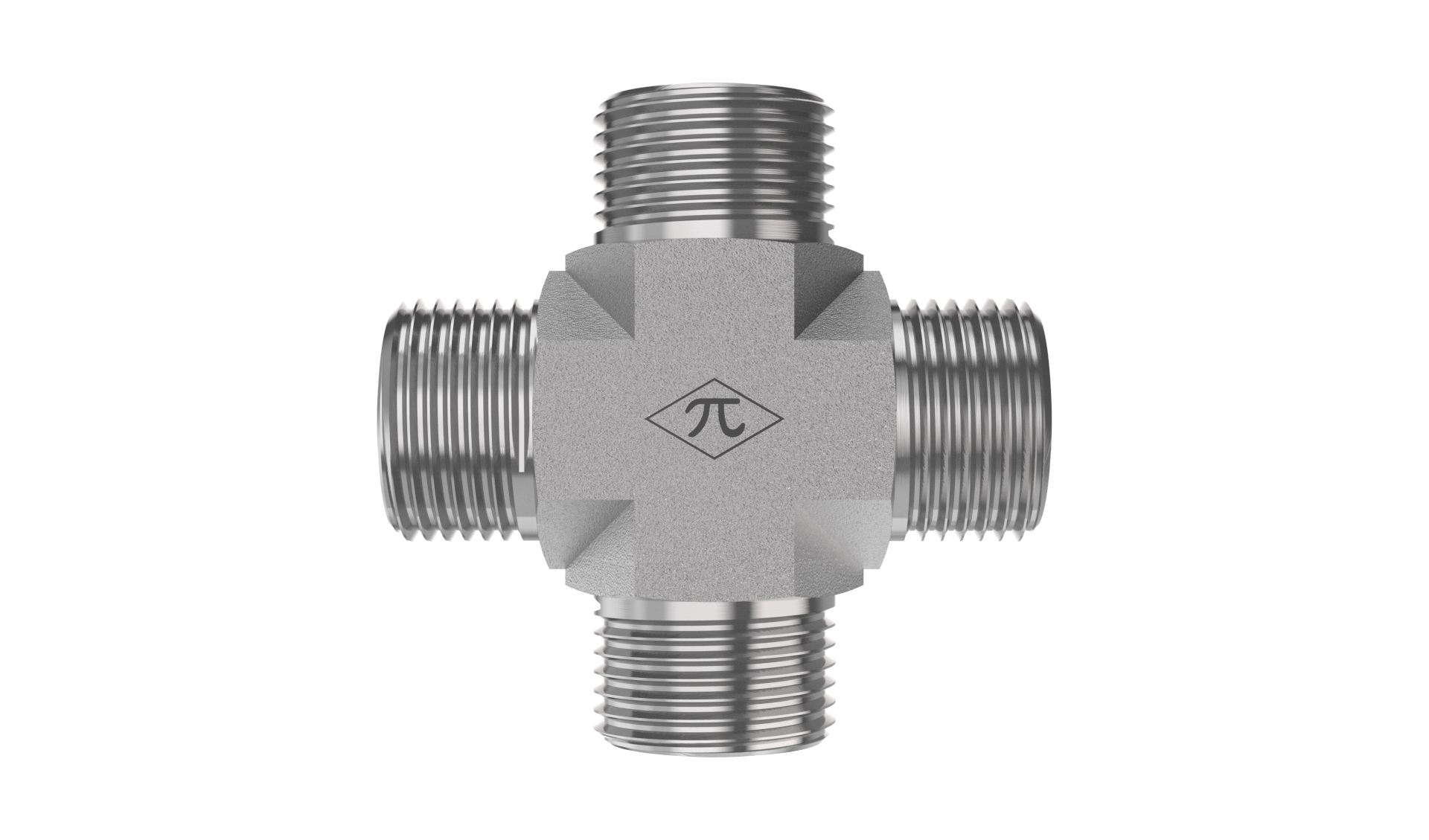

FS2650-06-06-06-06-FG

3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male ORFS

FS2650-06-06-06-06-FG is a 3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male ORFS x 3/8" Male ORFS in the FS2650-FG Series. For joining four ORFS flanged tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$11.77
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection C
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection D
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.30 lb
Cross References
AeroquipFF2127T0606S
Parker6 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
