HGW HYDRAULICS

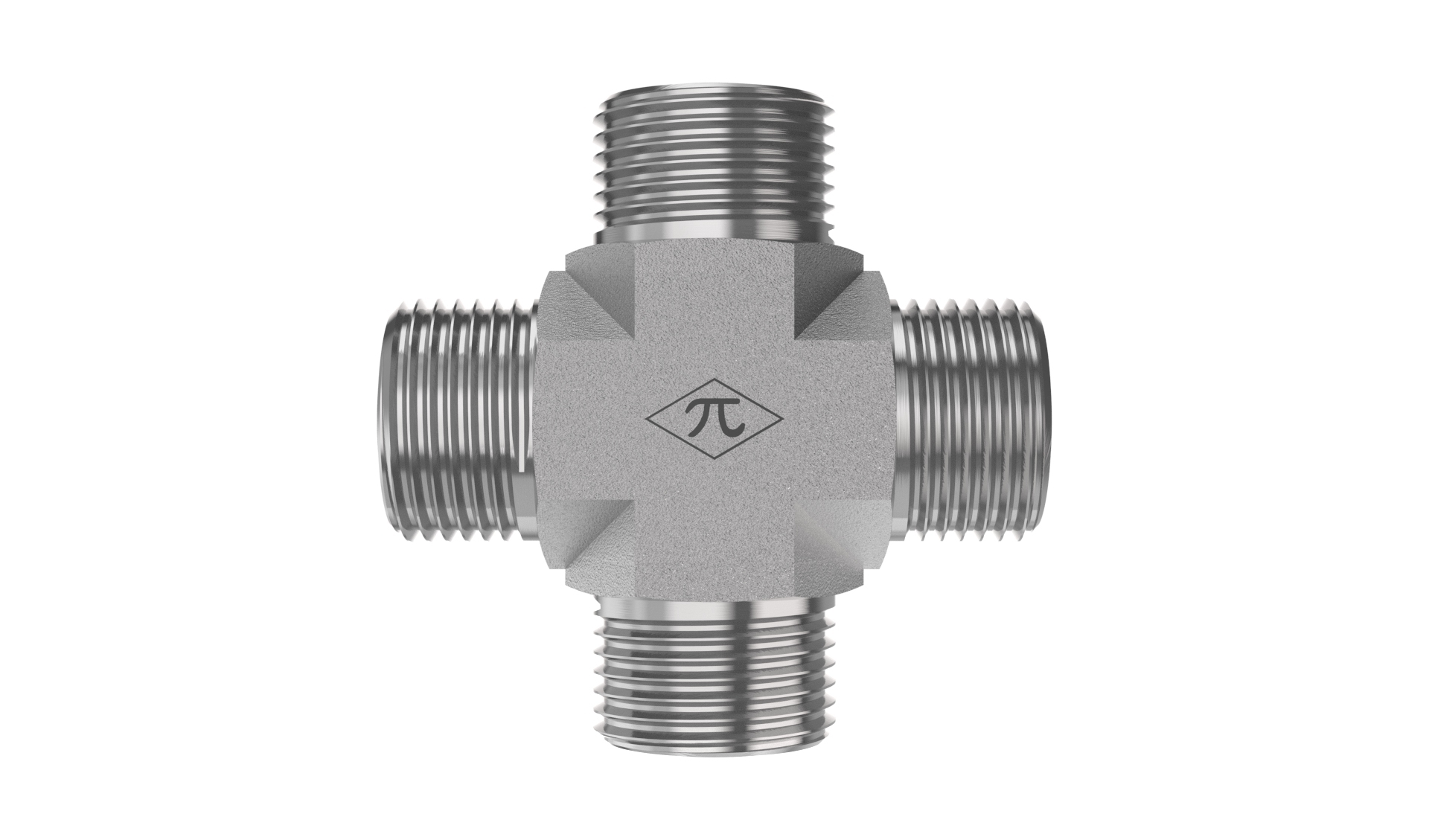

FS2650-08-08-08-08-FG

1/2" Male ORFS x 1/2" Male ORFS x 1/2" Male ORFS x 1/2" Male ORFS

FS2650-08-08-08-08-FG is a 1/2" Male ORFS x 1/2" Male ORFS x 1/2" Male ORFS x 1/2" Male ORFS in the FS2650-FG Series. For joining four ORFS flanged tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$14.42
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection C
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection D
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.36 lb
Cross References
AeroquipFF2127T0808S
Parker8 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
