HGW HYDRAULICS

FS2650-12-12-12-12-FG

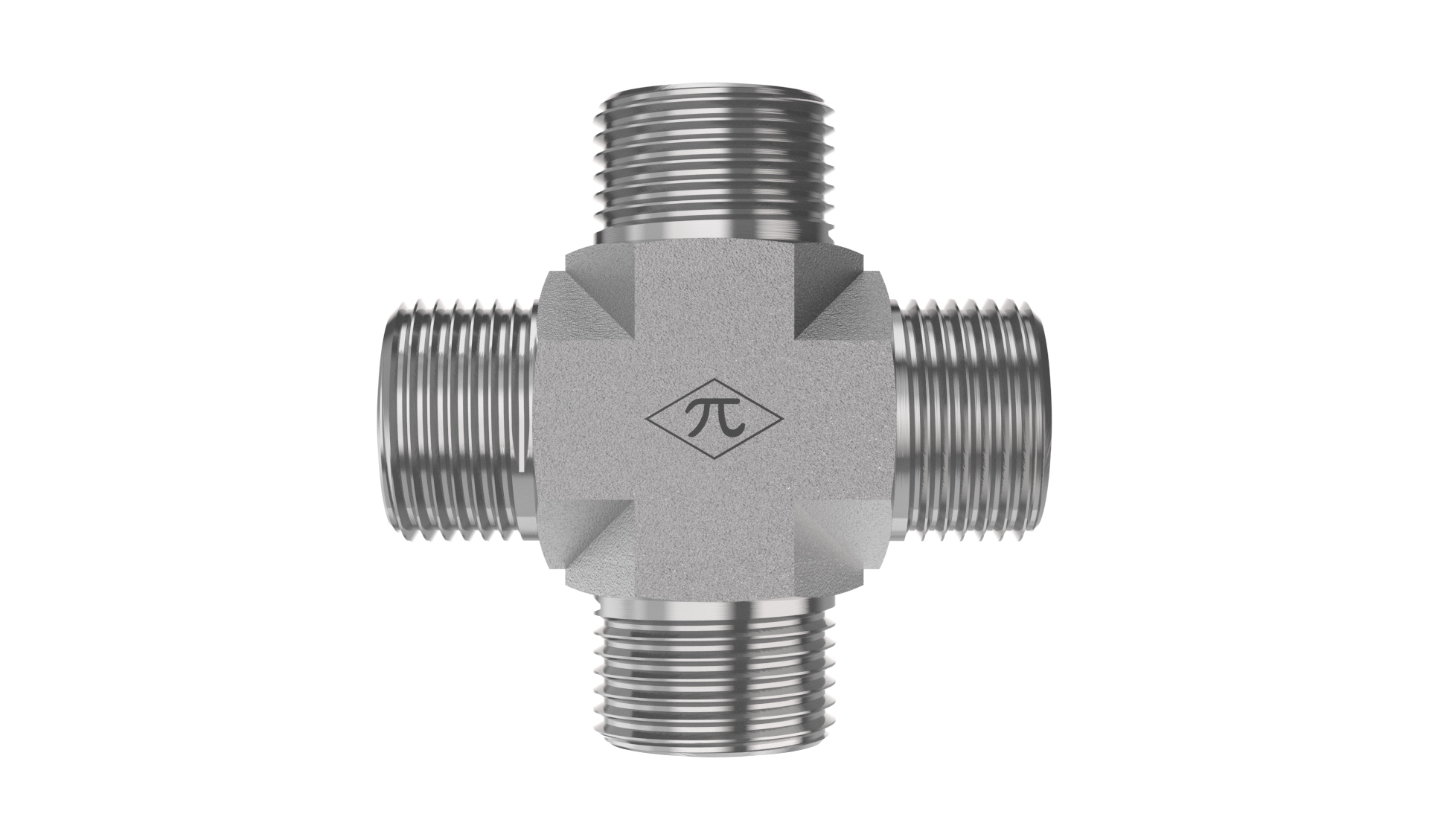

3/4" Male ORFS × 3/4" Male ORFS × 3/4" Male ORFS × 3/4" Male ORFS · Union Cross

The HGW FS2650-12-12-12-12-FG is a union cross joining 3/4" male ORFS connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Cross
$27.01
(0) Write a Review
SKU:
FS2650-12-12-12-12-FG

Product Details

Connection A
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection C
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection D
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight1.03 lb
Cross References
AeroquipFF2127T1212S
Parker12 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
