HGW HYDRAULICS

FS2650-16-16-16-16-FG-VITON

1" Male ORFS x 1" Male ORFS x 1" Male ORFS x 1" Male ORFS

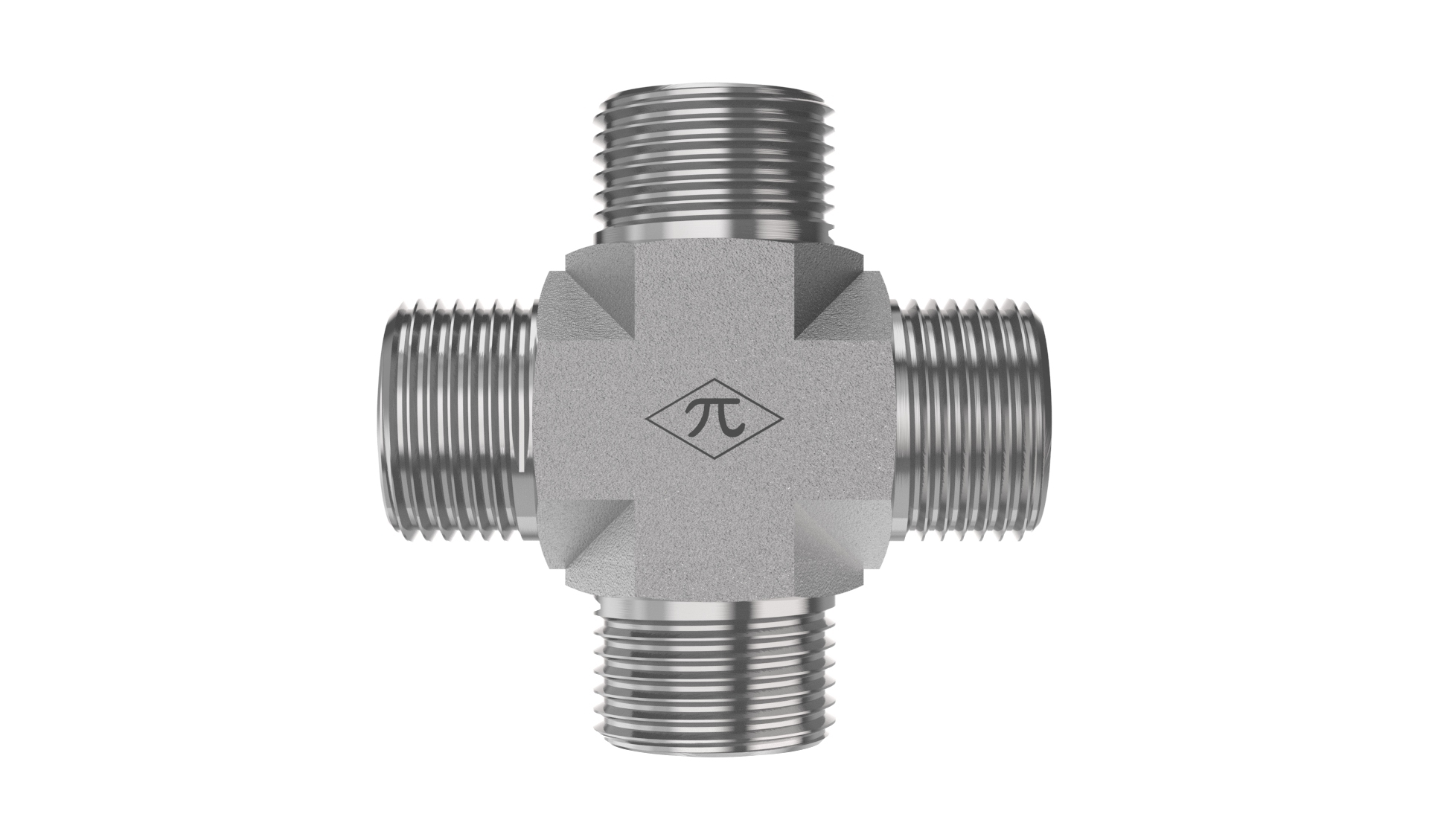

FS2650-16-16-16-16-FG-VITON is a 1" Male ORFS x 1" Male ORFS x 1" Male ORFS x 1" Male ORFS in the FS2650-FG Series. For joining four ORFS flanged tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$118.87
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection D
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight1.57 lb
Cross References
Parker16 KLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
