HGW HYDRAULICS

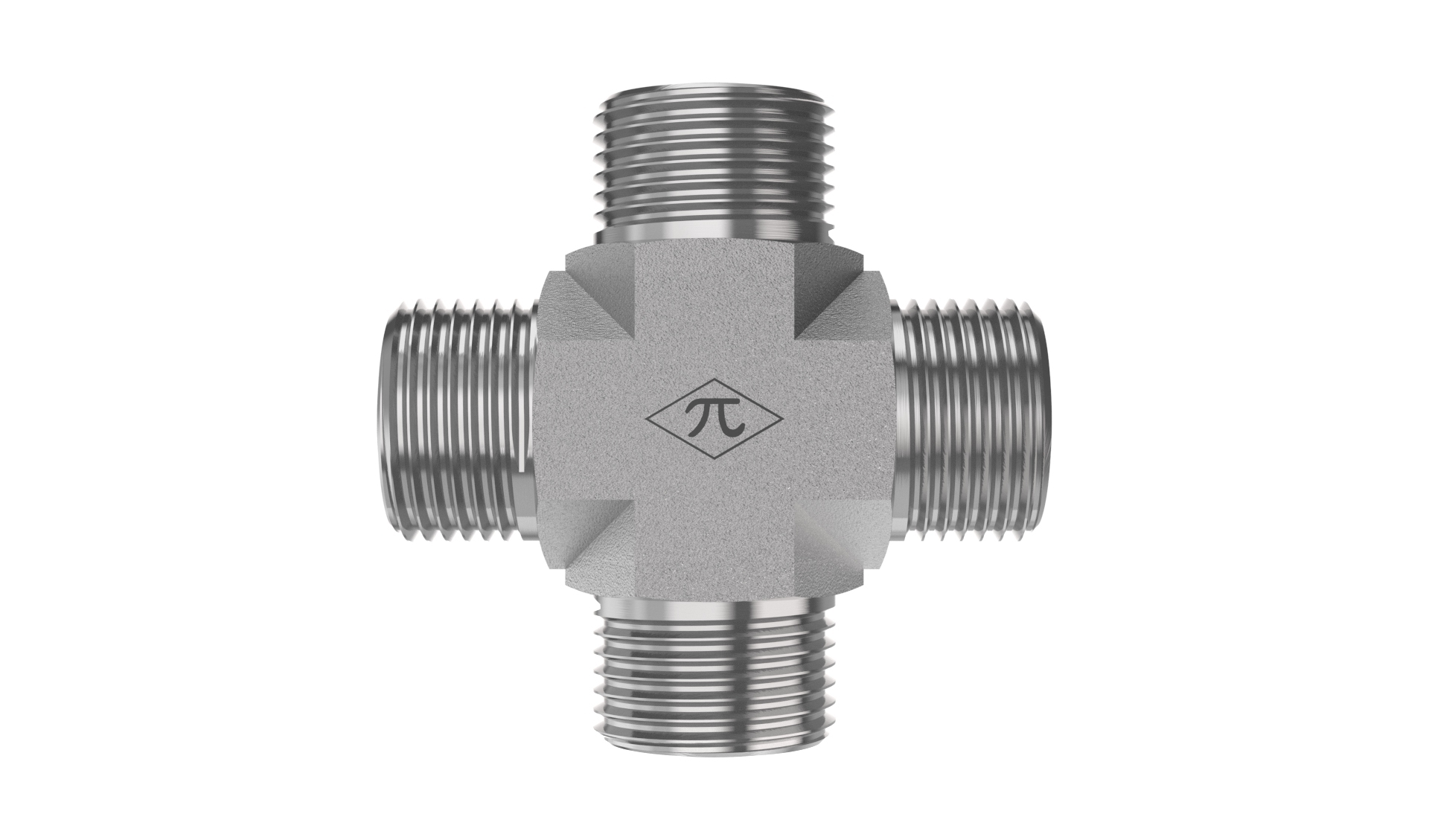

FS2650-16-16-16-16-FG

1" Male ORFS × 1" Male ORFS × 1" Male ORFS × 1" Male ORFS · Union Cross

The HGW FS2650-16-16-16-16-FG is a union cross joining 1" male ORFS connections across all 4 ports. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Cross
$44.80
(0) Write a Review
SKU:
FS2650-16-16-16-16-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection D
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight1.55 lb
Cross References
AeroquipFF2127T1616S
Parker16 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
