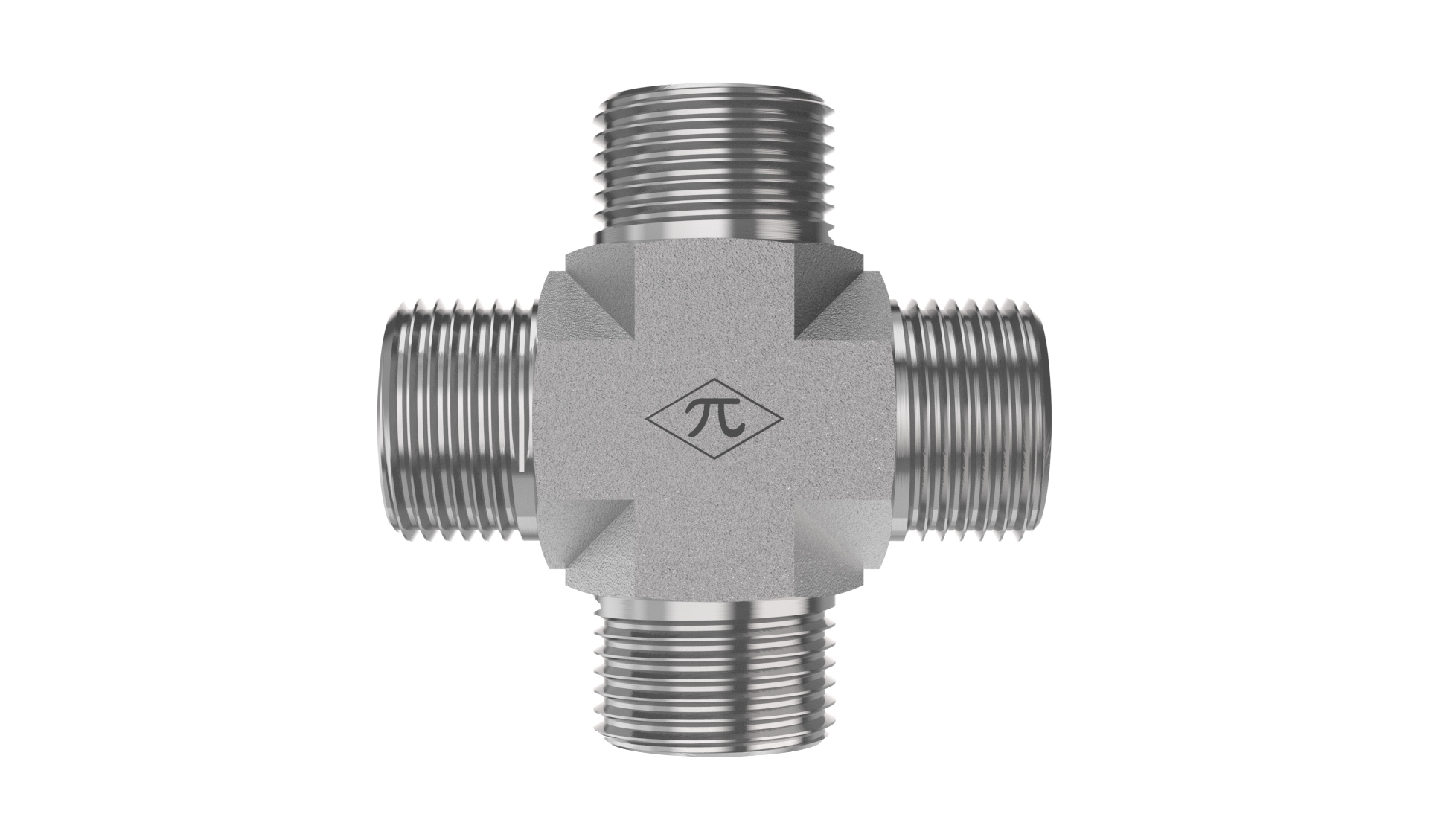

HGW HYDRAULICS

FS2650-20-20-20-20-FG

1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Male ORFS

FS2650-20-20-20-20-FG is a 1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Male ORFS in the FS2650-FG Series. For joining four ORFS flanged tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$47.29
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection B
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection C
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection D
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight2.01 lb
Cross References
AeroquipFF2127T2020S
Parker20 KLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
