HGW HYDRAULICS

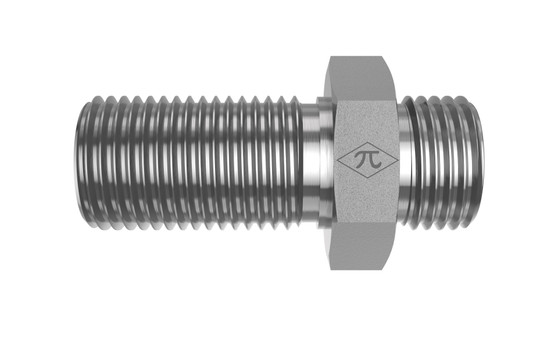

FS2700-08-08

1/2" Male ORFS Bulkhead x 1/2" Male ORFS

FS2700-08-08 is a 1/2" Male ORFS Bulkhead x 1/2" Male ORFS in the FS2700 Series. For routing a ORFS-sealed tubes or lines through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$5.43
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type13/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.29 lb
Cross References
AeroquipFF1994H4-0808S
Parker8 WLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
