HGW HYDRAULICS

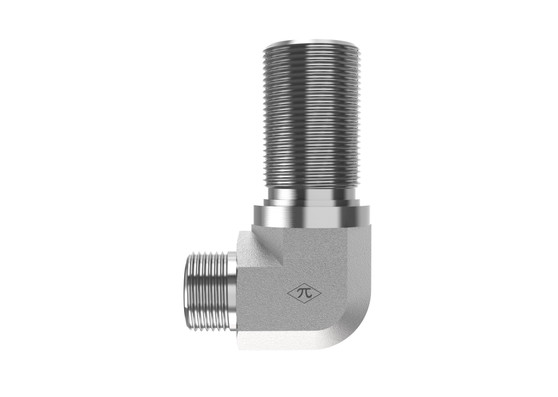

FS2701-12-12-SS

3/4" Male ORFS Bulkhead x 3/4" Male ORFS

FS2701-12-12-SS is a 3/4" Male ORFS Bulkhead x 3/4" Male ORFS in the FS2701-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 90° angle, secured with a bulkhead locknut.

  • Stainless Steel
  • Bulkhead Elbow
  • None
$289.36
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD3/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeBulkhead Elbow
Weight0.94 lb
PlatingNone
Cross References
Parker12 WELO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
