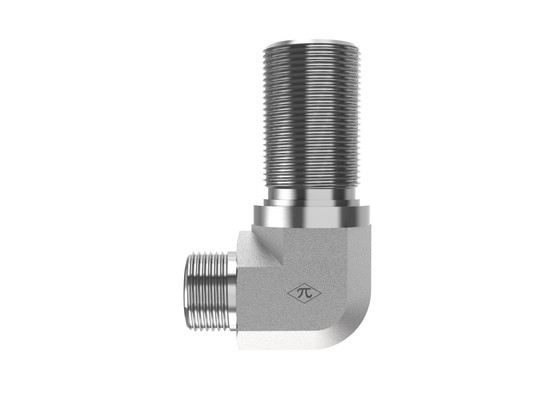

Google Merchant product image

HGW HYDRAULICS

FS2701-16-16-SS

1" Male ORFS Bulkhead x 1" Male ORFS

FS2701-16-16-SS is a 1" Male ORFS Bulkhead x 1" Male ORFS in the FS2701-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 90° angle, secured with a bulkhead locknut.

  • Stainless Steel
  • Bulkhead Elbow
  • None
$406.60
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD1"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-7/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeBulkhead Elbow
Weight1.46 lb
PlatingNone
Cross References
Parker16 WELO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
