FS2701-32-32-FG

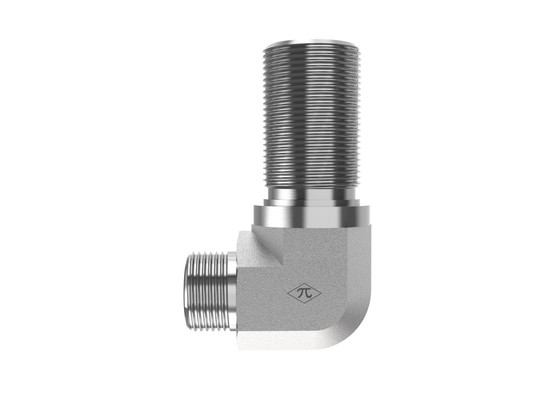

2" Male ORFS Bulkhead x 2" Male ORFS

FS2701-32-32-FG is a 2" Male ORFS Bulkhead x 2" Male ORFS in the FS2701-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 90° angle, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead Elbow
$495.77
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type2-1/2-12 UN
Connection B
TypeMale ORFS
Tube OD2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Elbow
Weight3.75 lb
Cross References
AeroquipFF2030H4-3232S
Parker32 WELO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
