HGW HYDRAULICS

FS2702-04-04-FG

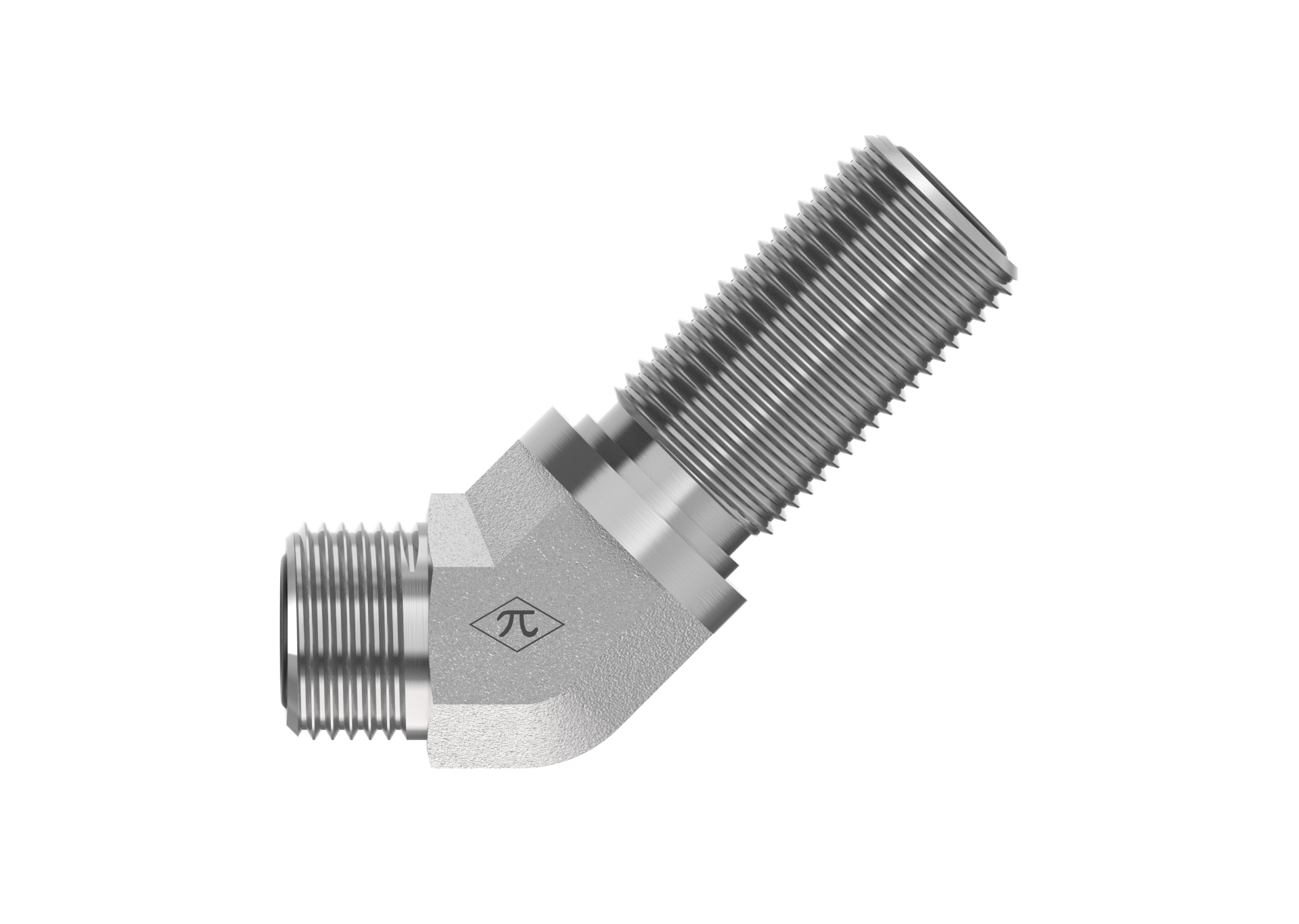

1/4" Male ORFS Bulkhead x 1/4" Male ORFS

FS2702-04-04-FG is a 1/4" Male ORFS Bulkhead x 1/4" Male ORFS in the FS2702-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 45° angle, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead Elbow
$4.30
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type9/16-18 UNF
Connection B
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Elbow
Weight0.15 lb
Cross References
AeroquipFF2144H4-0404S
Parker4 WNLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
