HGW HYDRAULICS

FS2702-10-08-FG

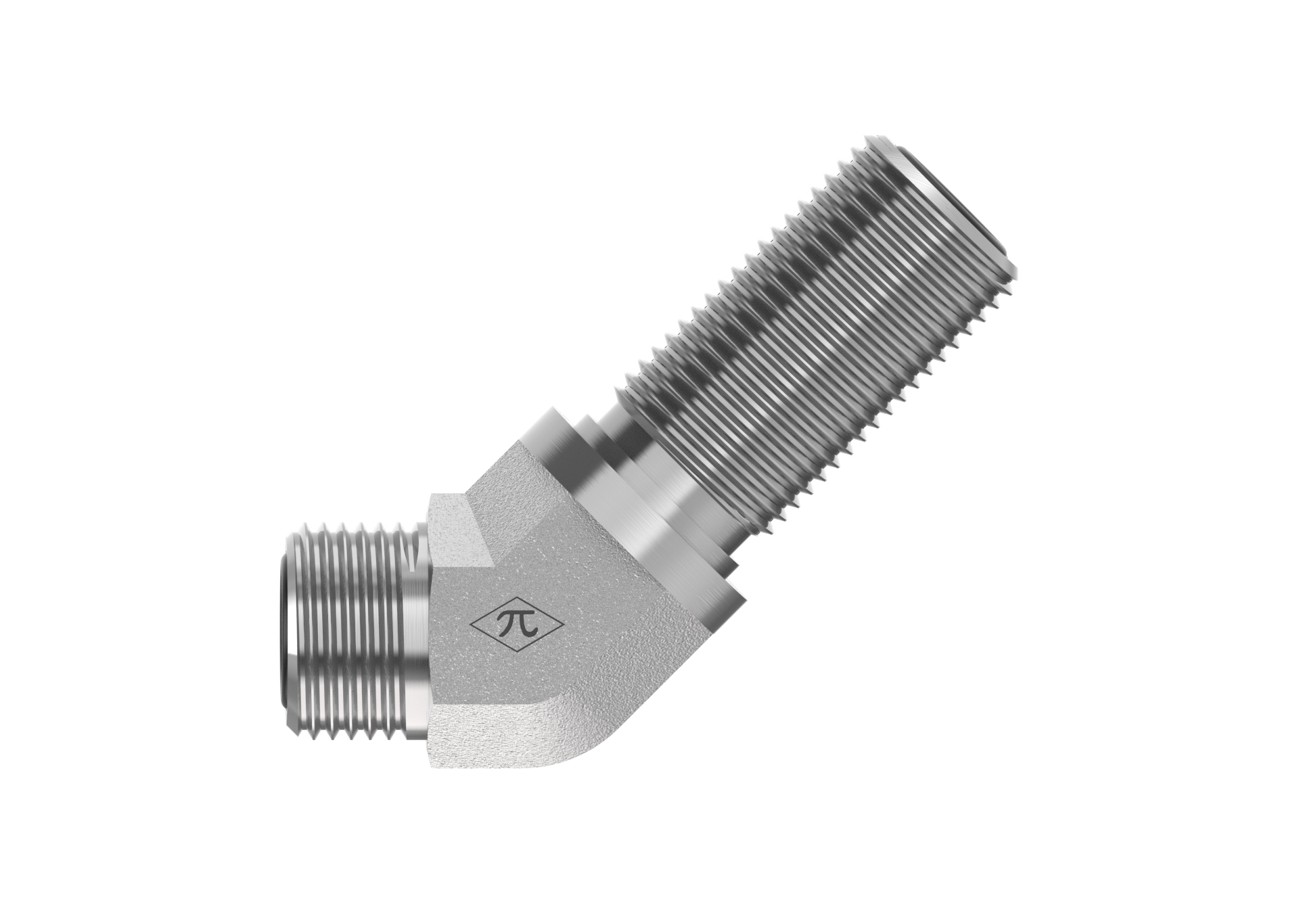

5/8" Male ORFS Bulkhead x 1/2" Male ORFS

FS2702-10-08-FG is a 5/8" Male ORFS Bulkhead x 1/2" Male ORFS in the FS2702-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 45° angle, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead Elbow
$23.16
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD5/8"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-14 UNS
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-14 UNS
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Elbow
Weight0.48 lb
Cross References
AeroquipFF2144H4-1008S
Parker10-8 WNLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
