HGW HYDRAULICS

FS2702-12-12-FG

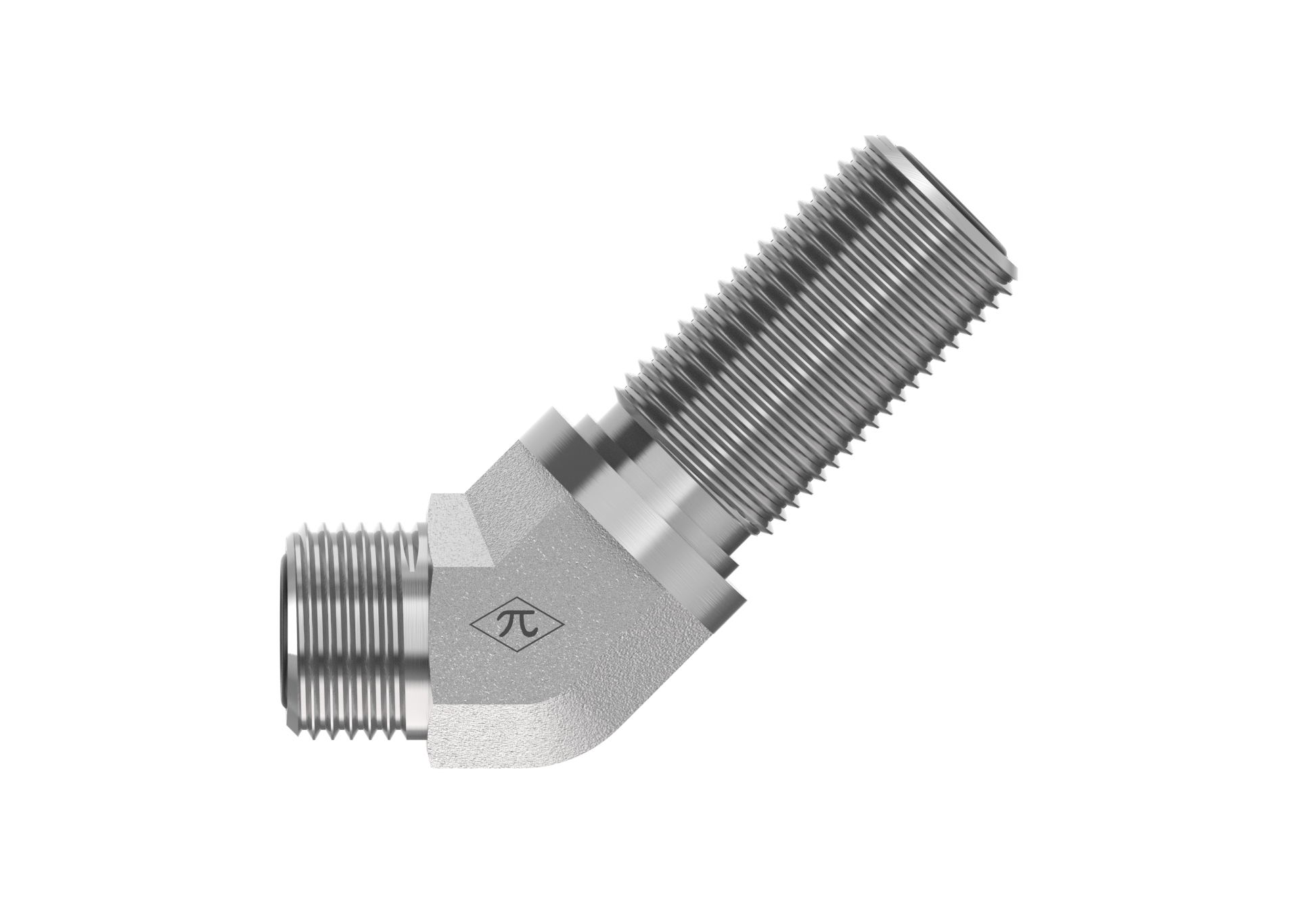

3/4" Male ORFS Bulkhead × 3/4" Male ORFS · Bulkhead Elbow

The HGW FS2702-12-12-FG is a bulkhead elbow joining 3/4" male ORFS bulkhead to 3/4" male ORFS. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead Elbow
$14.31
(0) Write a Review
SKU:
FS2702-12-12-FG

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD3/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Elbow
Weight0.78 lb
Cross References
AeroquipFF2144H4-1212S
Parker12 WNLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
