HGW HYDRAULICS

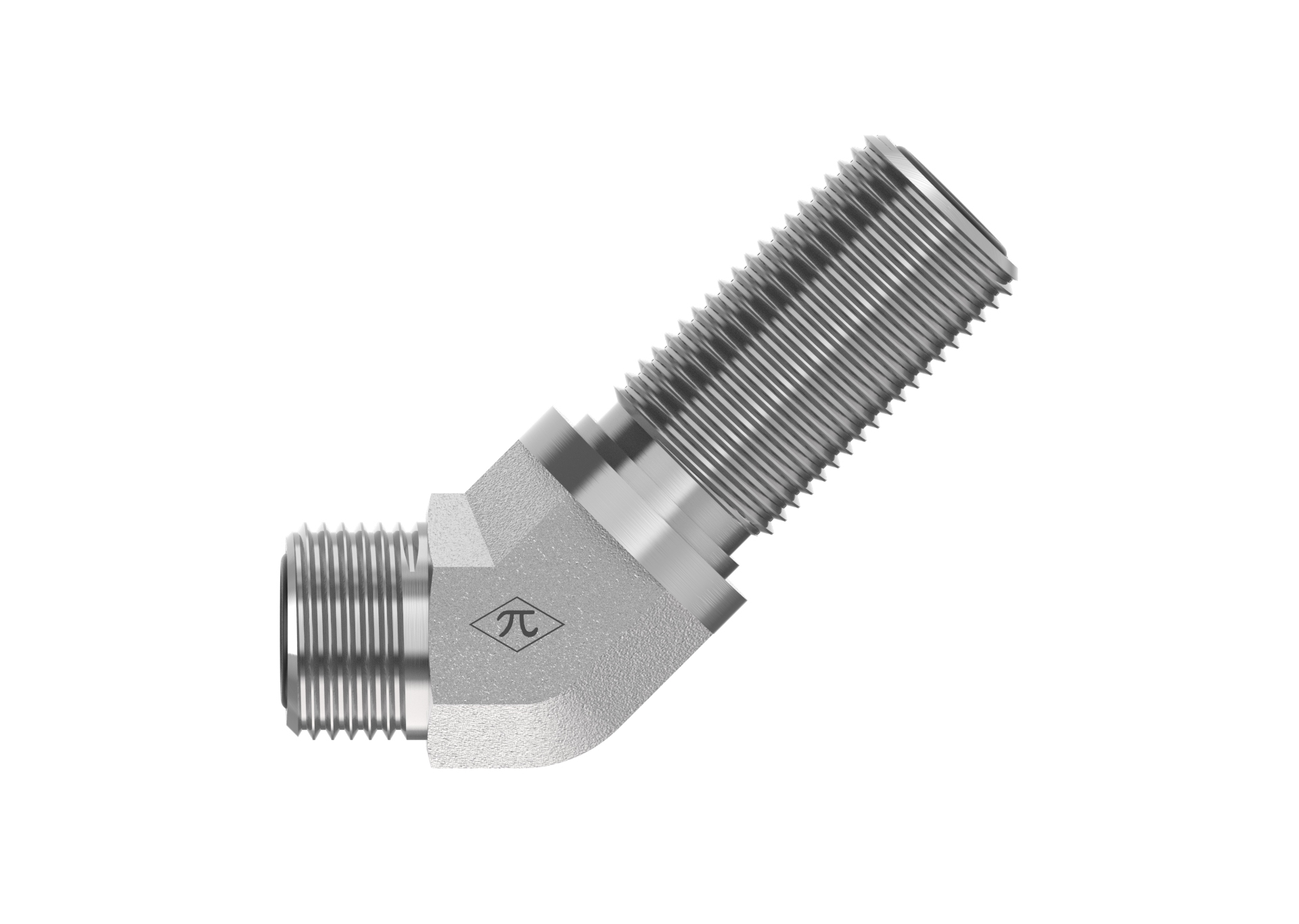

FS2702-20-20-FG

1-1/4" Male ORFS Bulkhead x 1-1/4" Male ORFS

FS2702-20-20-FG is a 1-1/4" Male ORFS Bulkhead x 1-1/4" Male ORFS in the FS2702-FG Series. For routing ORFS-sealed tubes or lines through a panel or wall at a 45° angle, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead Elbow
$42.20
(0) Write a Review

Product Details

Connection A
TypeMale ORFS Bulkhead
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-11/16-12 UN
Connection B
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal
Thread Type1-11/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Elbow
Weight1.49 lb
Cross References
AeroquipFF2144H4-2020S
Parker20 WNLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
