HGW HYDRAULICS

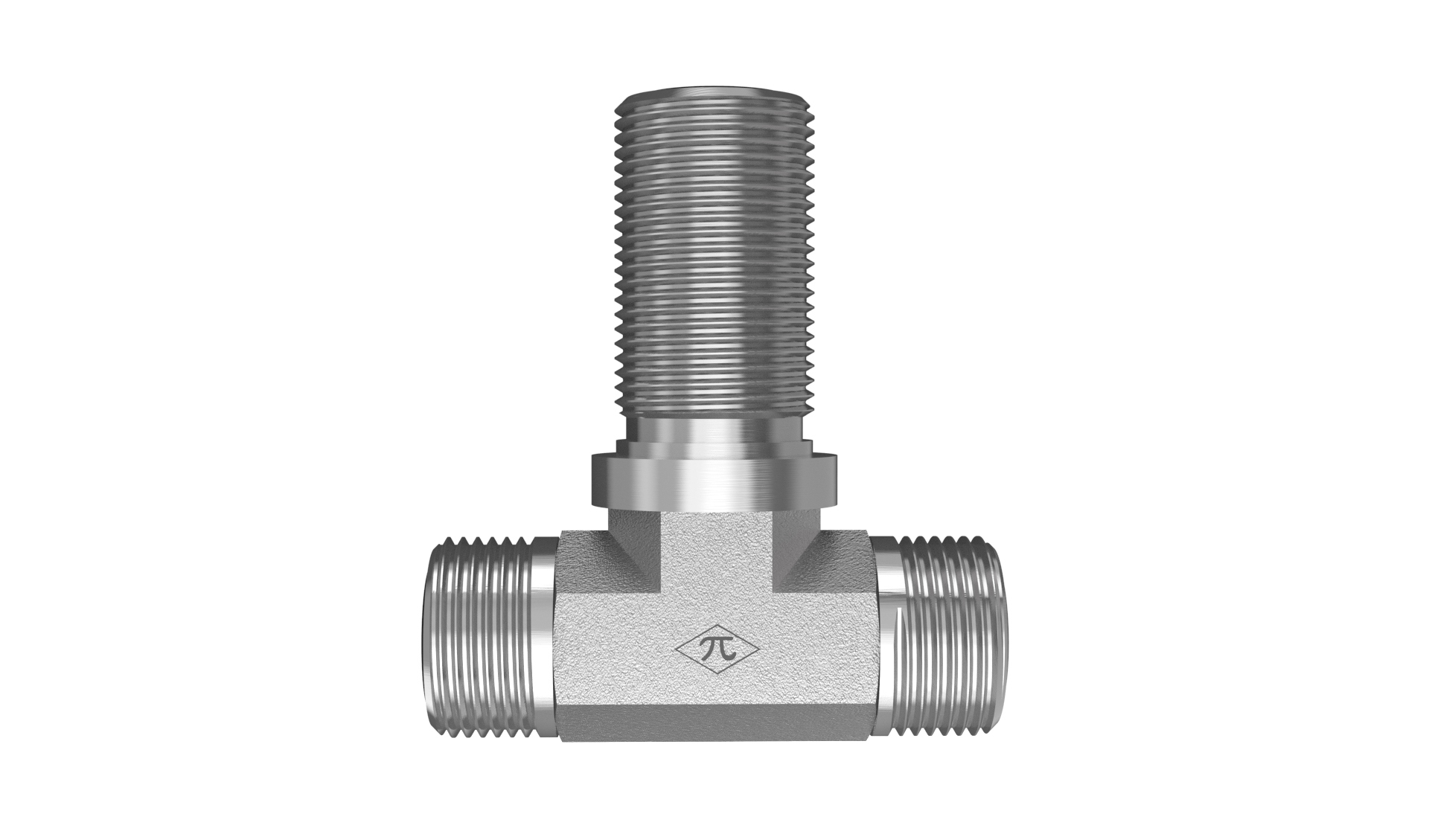

FS2703-04-04-04-FG-VITON

1/4" Male ORFS x 1/4" Male ORFS x 1/4" Male ORFS

FS2703-04-04-04-FG-VITON is a 1/4" Male ORFS x 1/4" Male ORFS x 1/4" Male ORFS in the FS2703-FG Series. For routing an ORFS-sealed line through a panel or wall as a branch tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$17.18
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Branch Tee
Weight0.20 lb
Cross References
Parker4 WJLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
