HGW HYDRAULICS

FS2703-08-08-12-FG

1/2" Male ORFS x 1/2" Male ORFS x 3/4" Male ORFS

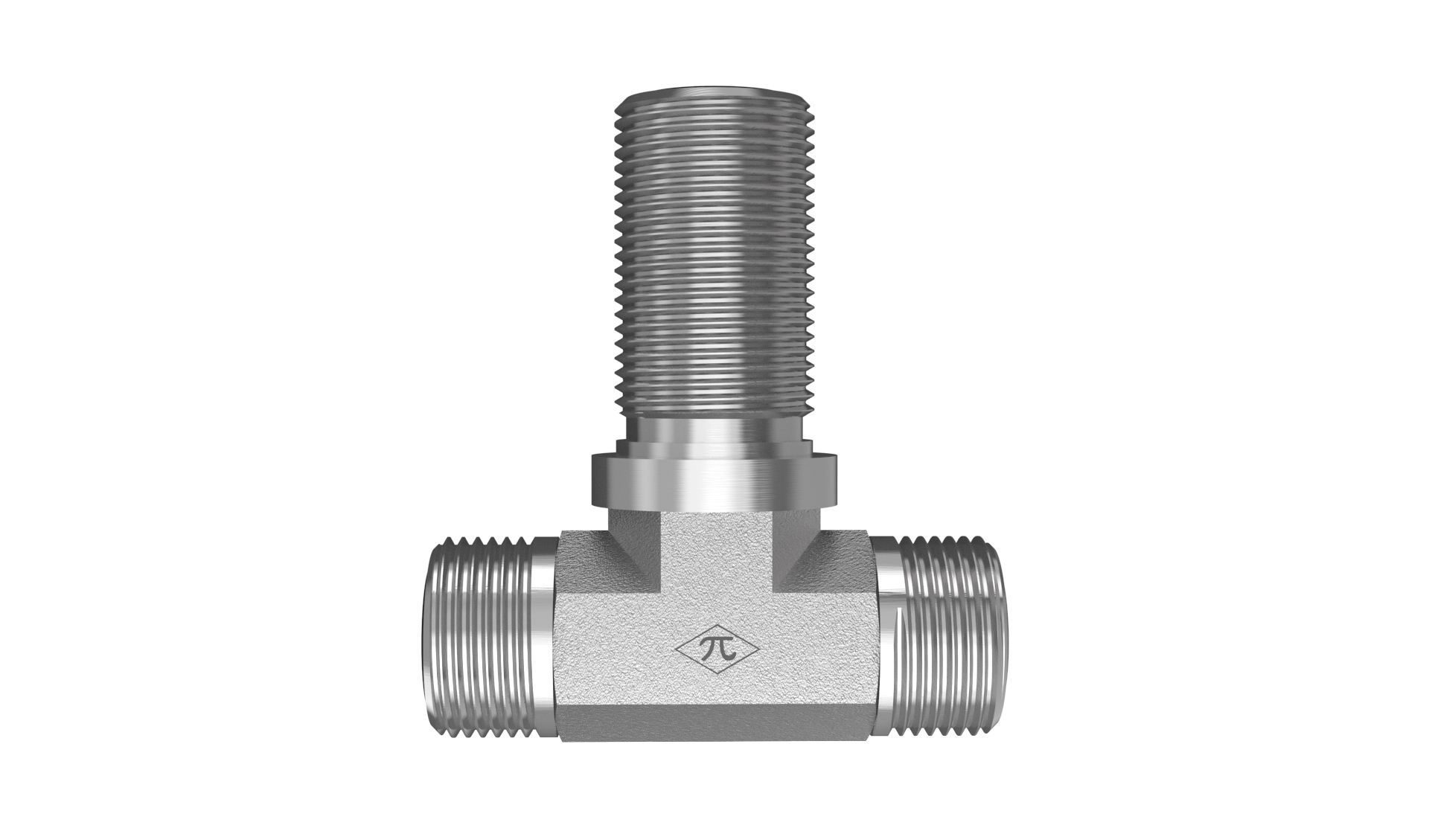

FS2703-08-08-12-FG is a 1/2" Male ORFS x 1/2" Male ORFS x 3/4" Male ORFS in the FS2703-FG Series. For routing an ORFS-sealed line through a panel or wall as a branch tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$73.78
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection C
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Branch Tee
Weight0.58 lb
Cross References
AeroquipFF2033H4-0812S
Parker8-8-12 WJLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
