HGW HYDRAULICS

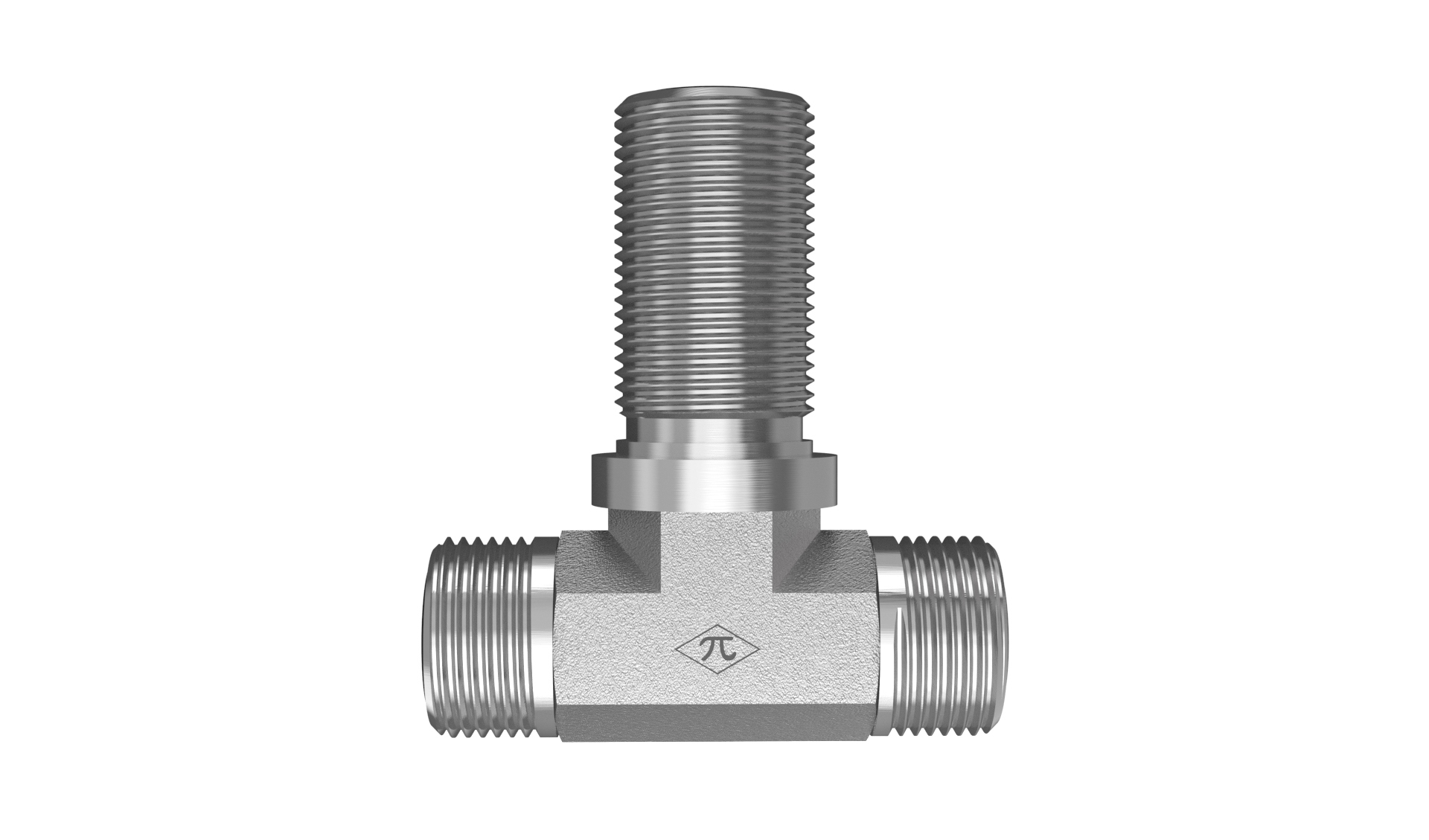

FS2703-12-12-12-FG

3/4" Male ORFS x 3/4" Male ORFS x 3/4" Male ORFS

FS2703-12-12-12-FG is a 3/4" Male ORFS x 3/4" Male ORFS x 3/4" Male ORFS in the FS2703-FG Series. For routing an ORFS-sealed line through a panel or wall as a branch tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$19.26
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection C
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Branch Tee
Weight1.14 lb
Cross References
AeroquipFF2033H4-1212S
Parker12 WJLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
