HGW HYDRAULICS

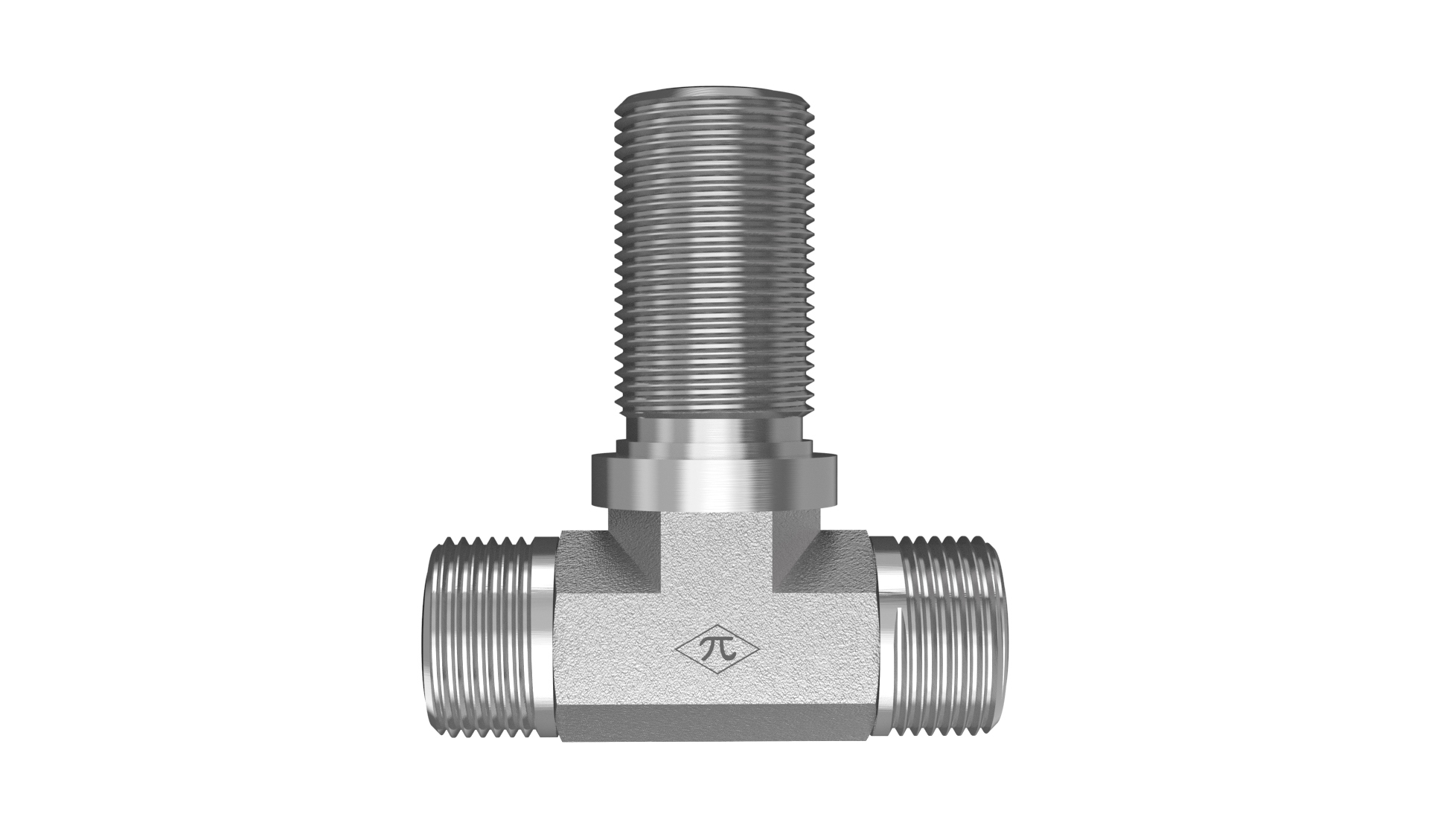

FS2703-16-16-16-FG

1" Male ORFS x 1" Male ORFS x 1" Male ORFS

FS2703-16-16-16-FG is a 1" Male ORFS x 1" Male ORFS x 1" Male ORFS in the FS2703-FG Series. For routing an ORFS-sealed line through a panel or wall as a branch tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$39.57
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Branch Tee
Weight1.69 lb
Cross References
AeroquipFF2033H4-1616S
Parker16 WJLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
