HGW HYDRAULICS

FS6400-06-05-O

3/8" Male ORFS × 1/2-20 Male ORB · Straight Male Connector

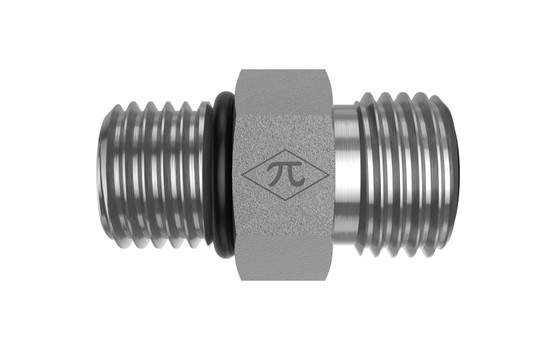

The HGW FS6400-06-05-O is a straight male connector joining 3/8" male ORFS to 1/2-20 male ORB. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Connector
$4.98
(0) Write a Review
SKU:
FS6400-06-05-O

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale ORB
Port Size1/2-20
StandardSAE J1926
Thread Type11/16-16 UNF
Size1/2-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Connector
Weight0.09 lb
Cross References
AeroquipFF1852T0605S
Parker6-5 F5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
