HGW HYDRAULICS

FS6400-08-06-O-SS

1/2" Male ORFS × 9/16-18 Male ORB · Straight Male Connector

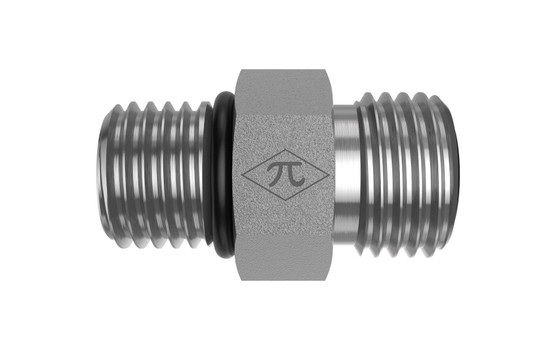

The HGW FS6400-08-06-O-SS is a straight male connector joining 1/2" male ORFS to 9/16-18 male ORB. Made from stainless steel, it uses SAE J1453 and SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Connector
$98.40
(0) Write a Review
SKU:
FS6400-08-06-O-SS

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORB
Port Size9/16-18
StandardSAE J1926
Thread Type13/16-16 UNF
Size9/16-18
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Connector
Weight0.14 lb
Cross References
Aeroquip259-FF1852T0806
Parker8-6 F5OLO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
