HGW HYDRAULICS

FS6400-08-10-O

1/2" Male ORFS × 7/8-14 Male ORB · Straight Male Connector

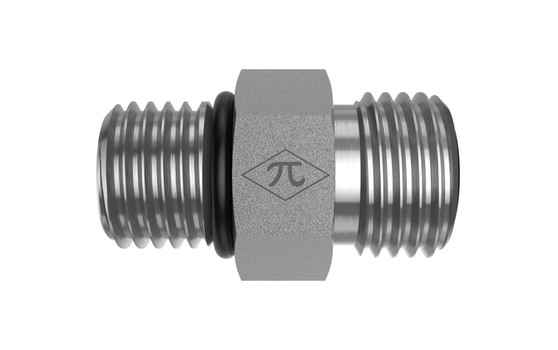

The HGW FS6400-08-10-O is a straight male connector joining 1/2" male ORFS to 7/8-14 male ORB. Made from trivalent-zinc-plated steel, it uses SAE J1453 and SAE J1926 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Connector
$3.78
(0) Write a Review
SKU:
FS6400-08-10-O

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORB
Port Size7/8-14
StandardSAE J1926
Thread Type13/16-16 UNF
Size7/8-14
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Connector
Weight0.23 lb
Cross References
AeroquipFF1852T0810S
Parker8-10 F5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
