HGW HYDRAULICS

FS6400-08-12-O-VITON

1/2" Male ORFS x 1-1/16-12 Male ORB

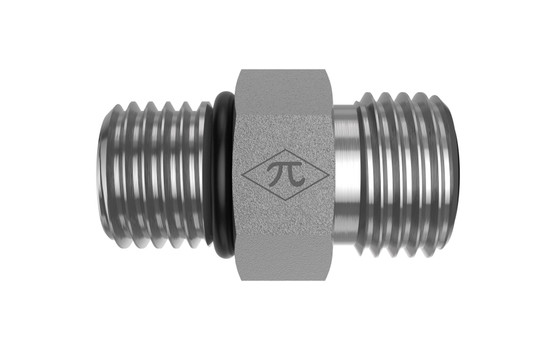

FS6400-08-12-O-VITON is a 1/2" Male ORFS x 1-1/16-12 Male ORB in the FS6400-O Series. For connecting ORFS flanged tubes or lines to SAE port.

  • Steel
  • Trivalent Zinc
  • Male Connector
$15.91
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type13/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Connector
Weight0.33 lb
Cross References
AeroquipFF1852T0812-213
Parker8-12 F5OLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
